AT-75
83 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

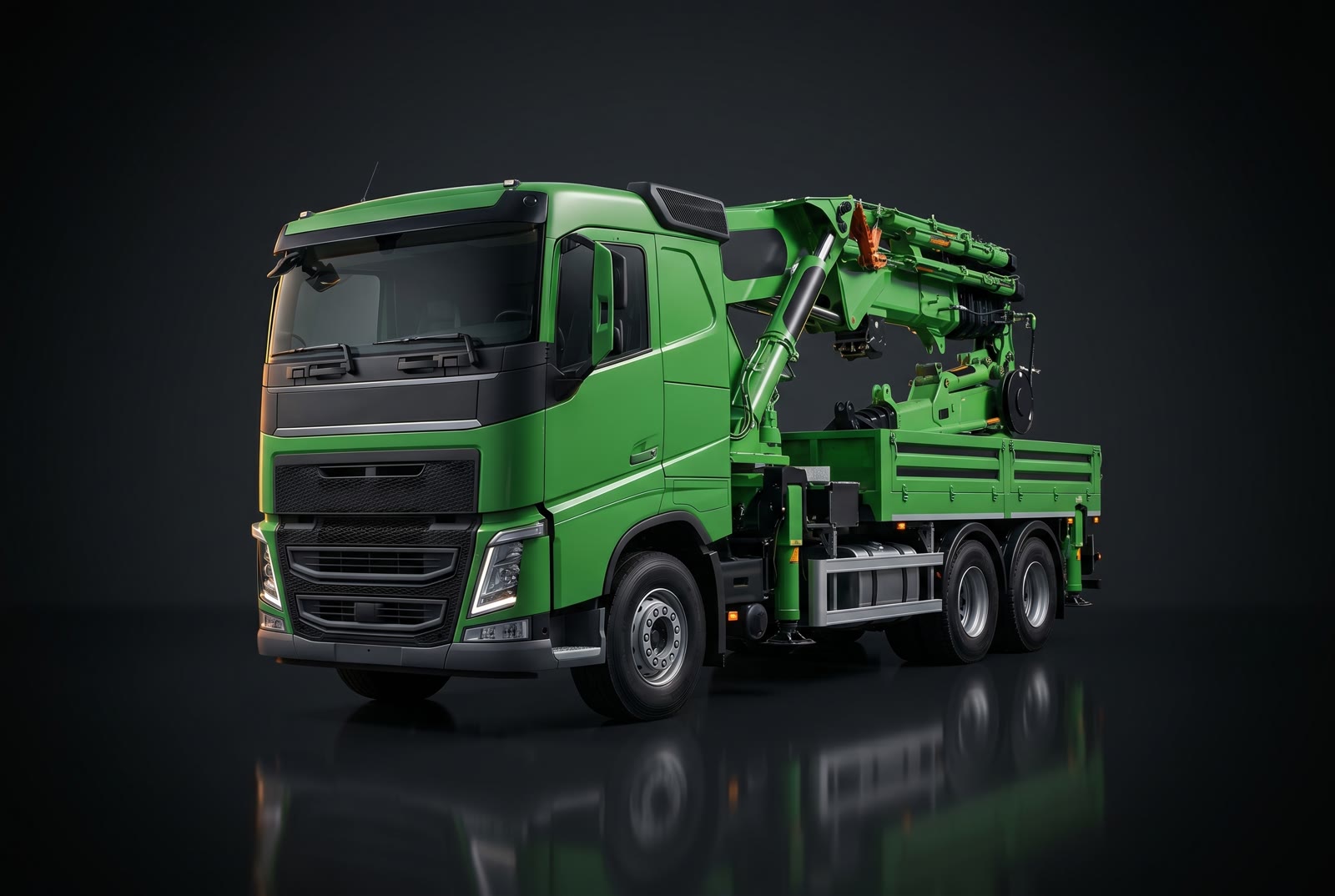

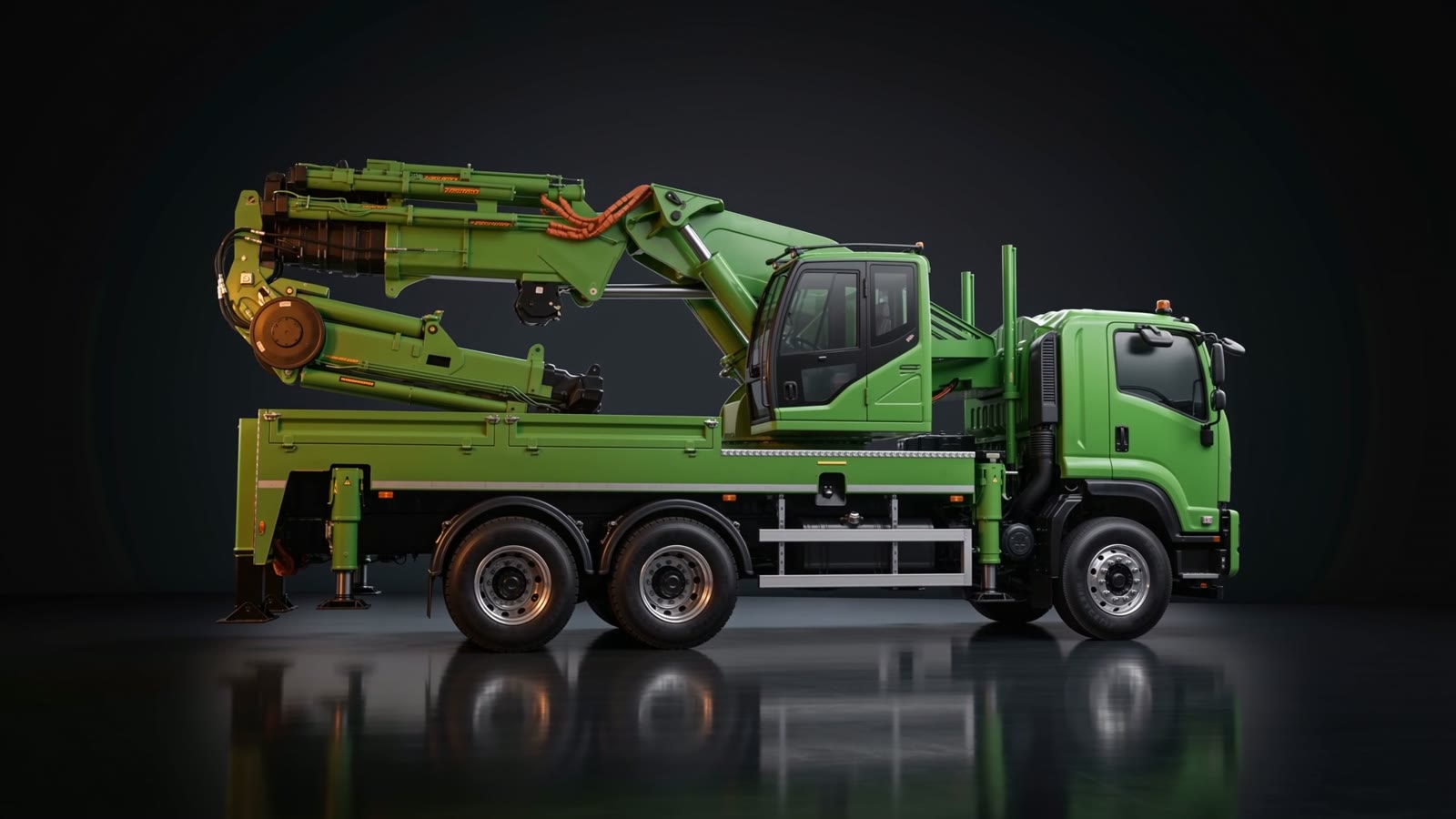

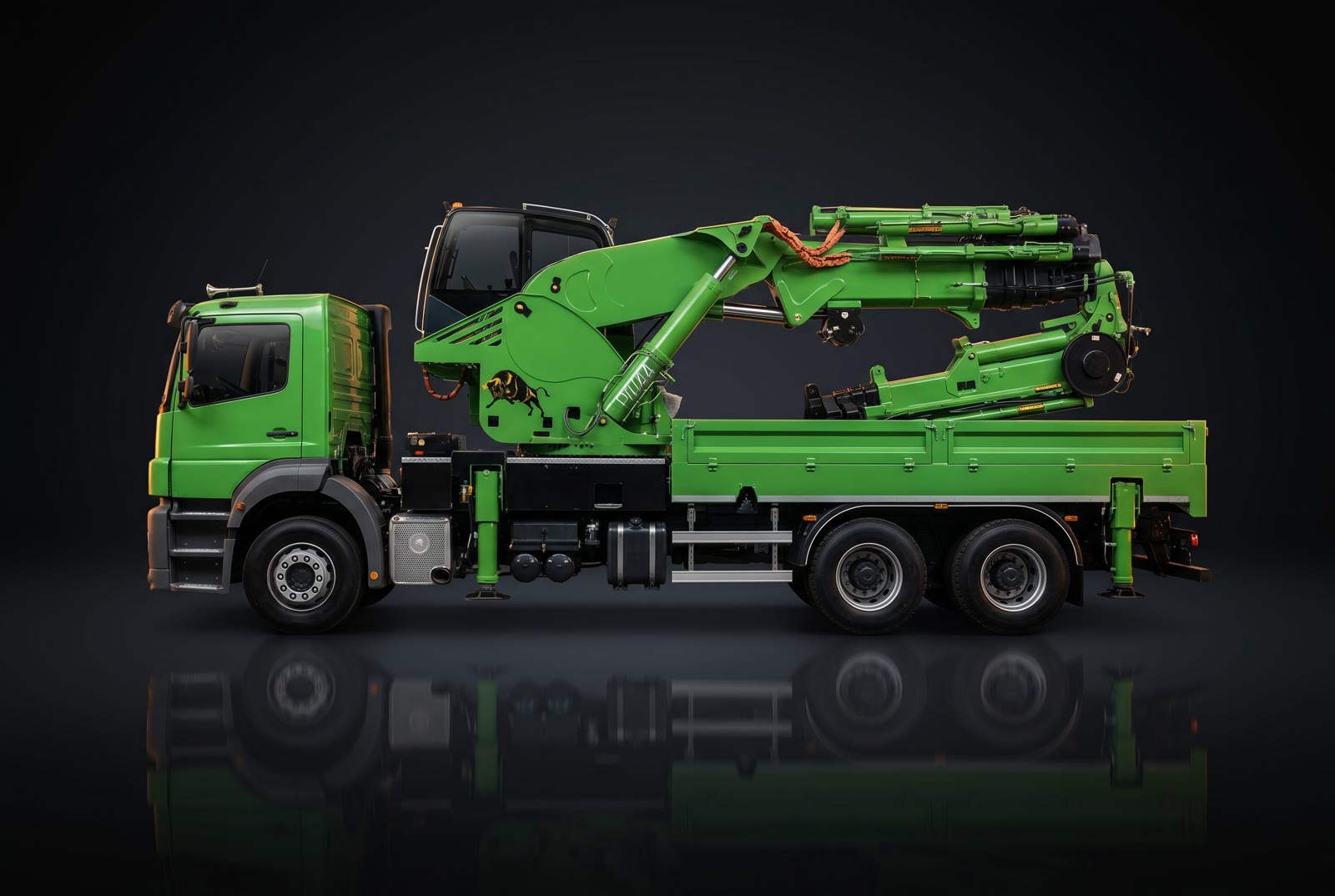

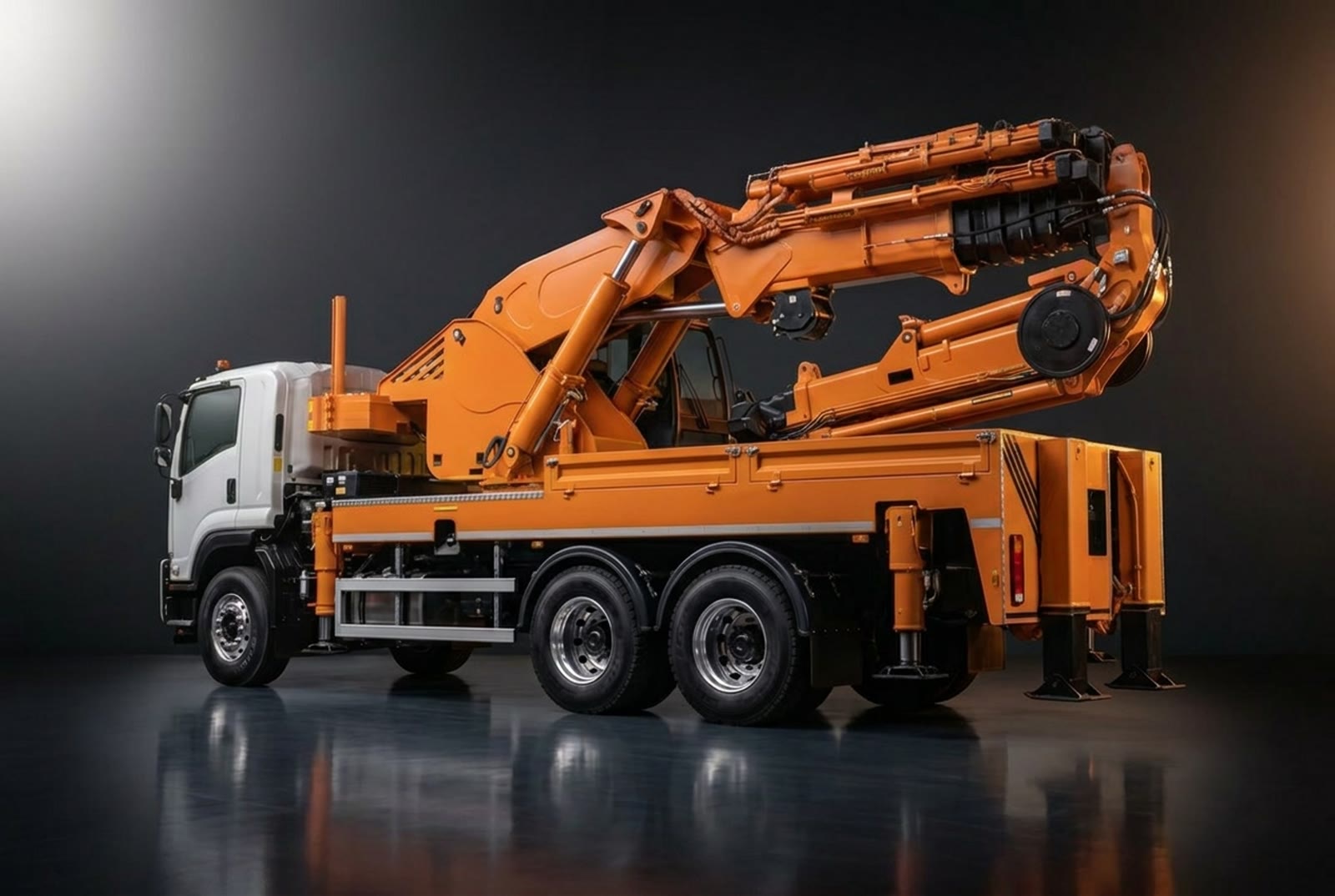

Studio gallery
Every angle
Specifications
AT-75 at a glance
Rated capacity
165,350 lb
Max reach
61.7 ft
Working pressure
3,626 psi
Outrigger spread
36.3 ft
7 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-75 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 7 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 17.7 ft | 87,965 lb |
| 22.9 ft | 66,580 lb |
| 28.5 ft | 54,785 lb |
| 34.4 ft | 42,660 lb |
| 40.6 ft | 35,605 lb |
| 47.2 ft | 30,095 lb |
| 53.7 ft | 25,840 lb |
| 61.7 ft | 20,170 lb |
Need the AT-75?
Send us your lift, reach and truck class. We respond with a quote and lead time within one business day.
