AT-45
50 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

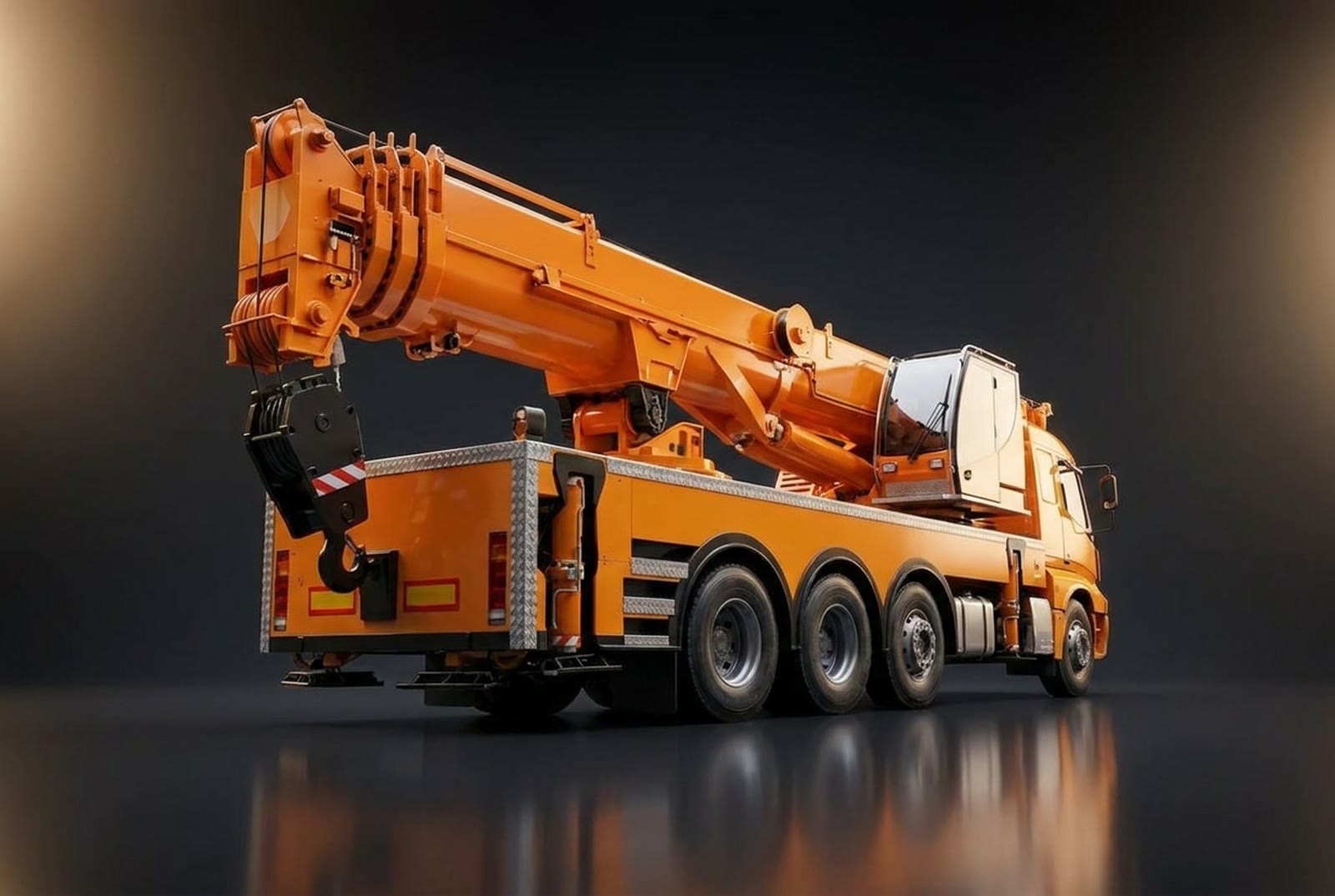

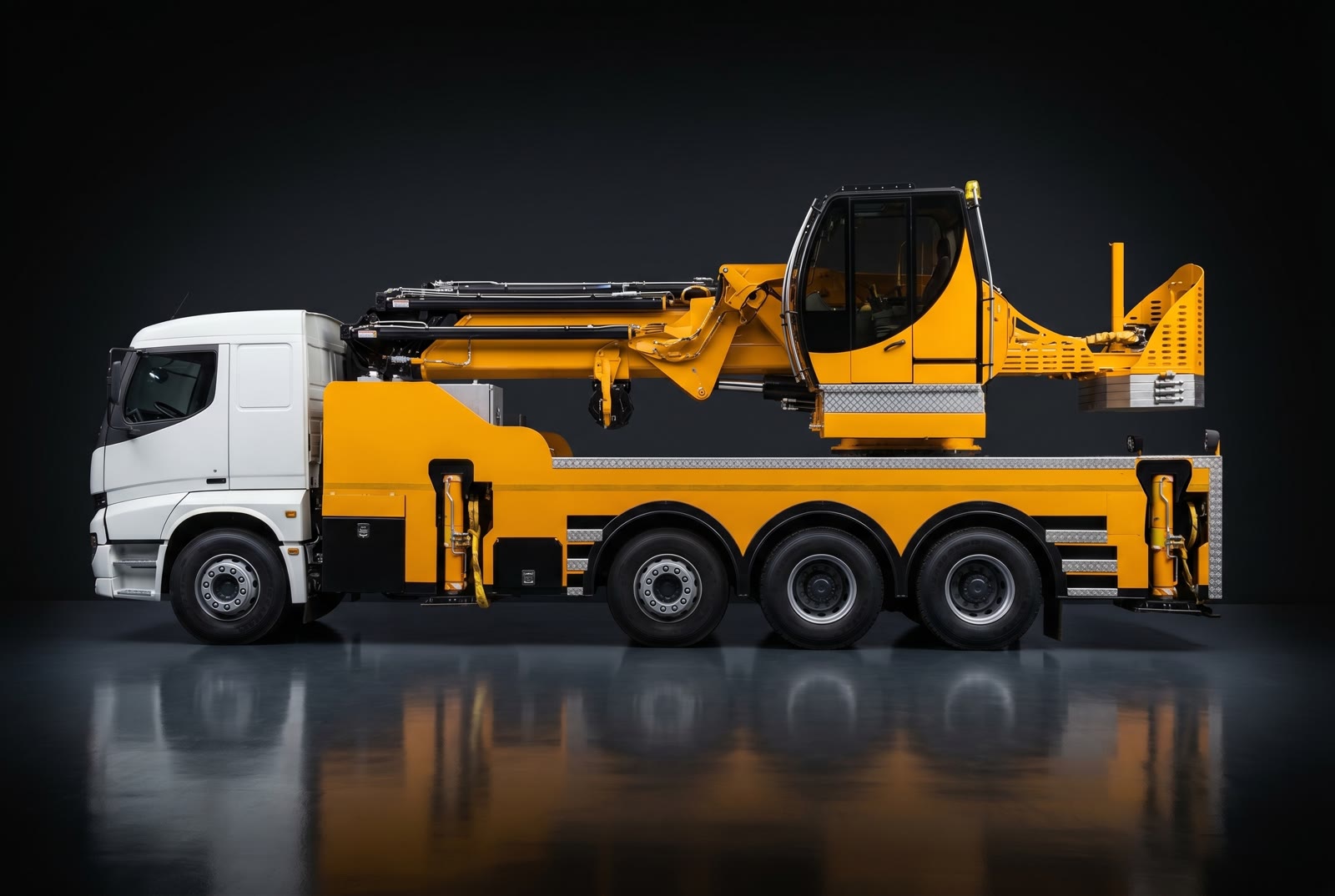

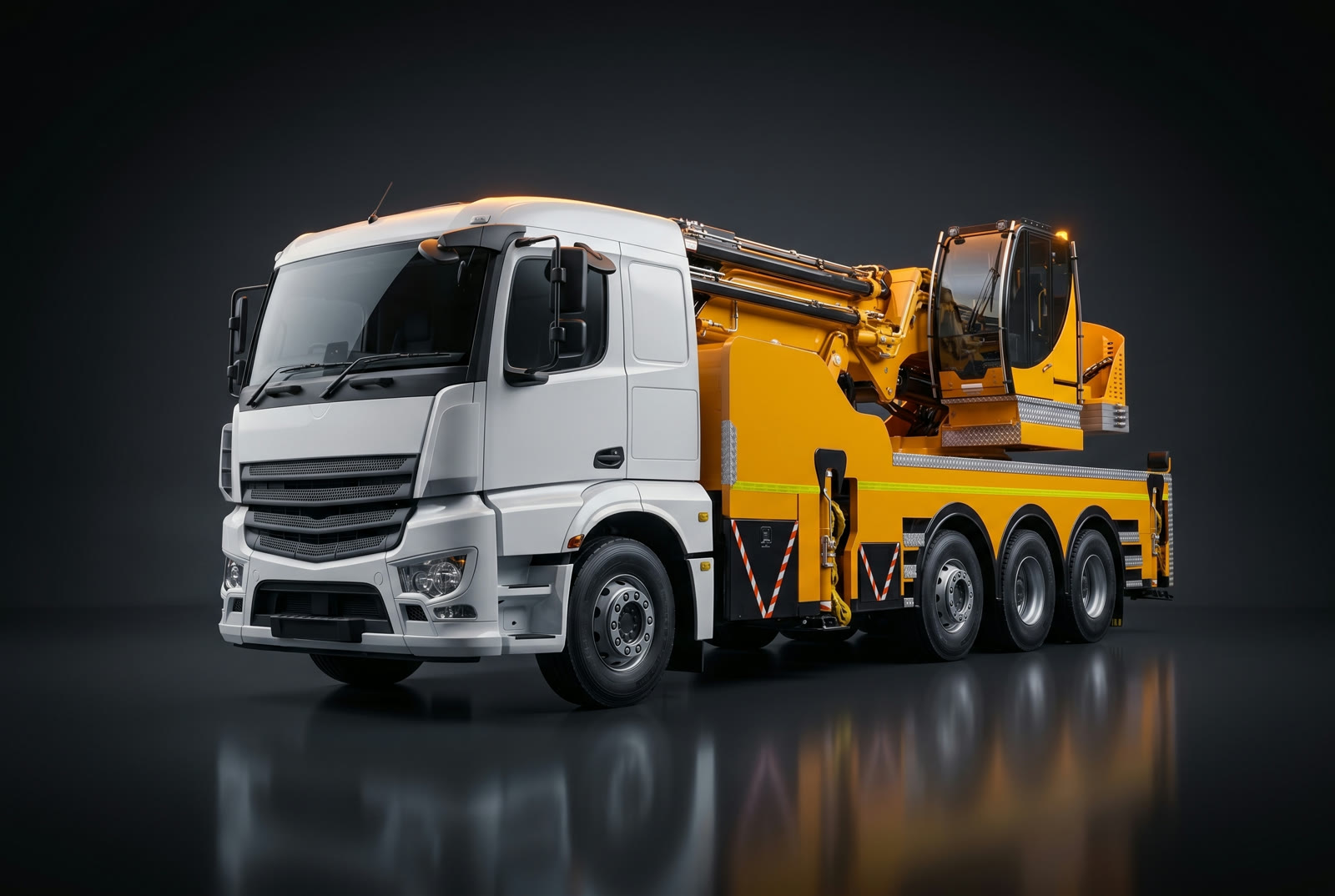

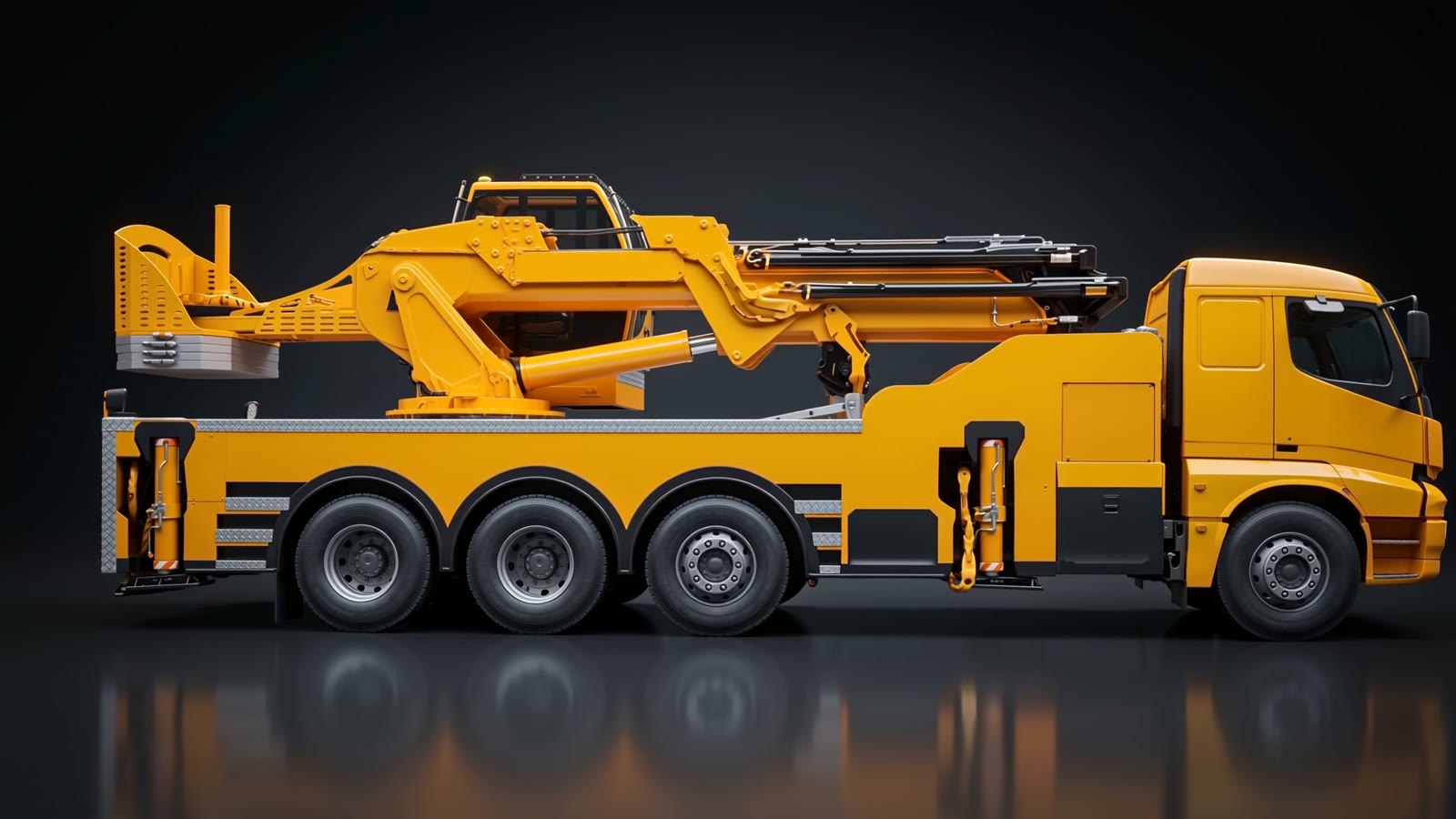

Studio gallery
Every angle
Specifications
AT-45 at a glance
Rated capacity
99,210 lb
Max reach
73.2 ft
Working pressure
3,626 psi
Outrigger spread
29.7 ft
6 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-45 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 6 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 18.0 ft | 52,920 lb |
| 24.6 ft | 38,075 lb |
| 31.3 ft | 28,935 lb |
| 38.7 ft | 21,375 lb |
| 46.1 ft | 16,655 lb |
| 54.6 ft | 13,505 lb |
| 63.8 ft | 10,550 lb |
| 73.2 ft | 8,335 lb |
Need the AT-45?
Send us your lift, reach and truck class. We respond with a quote and lead time within one business day.
