AT-35-38
39-42 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

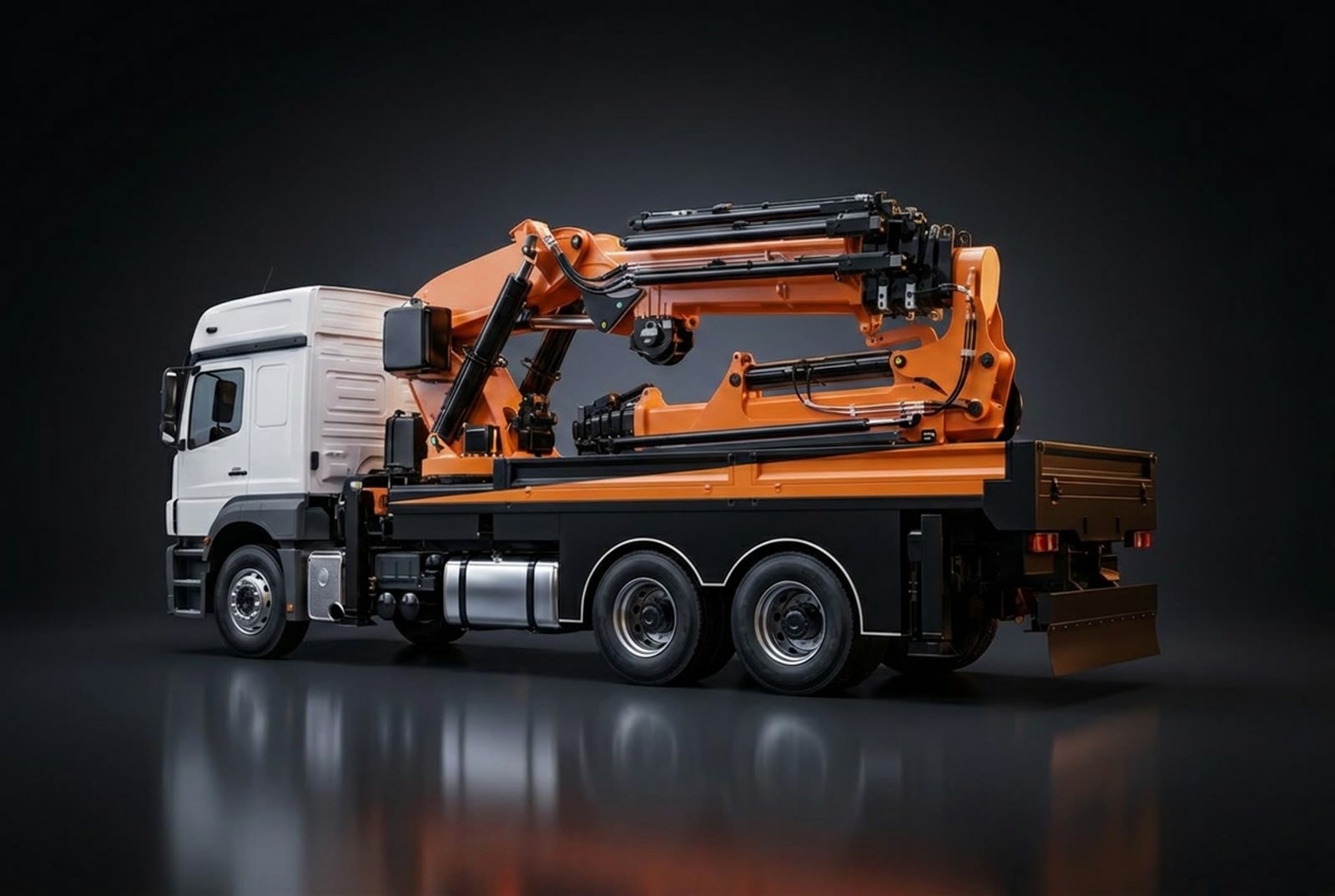

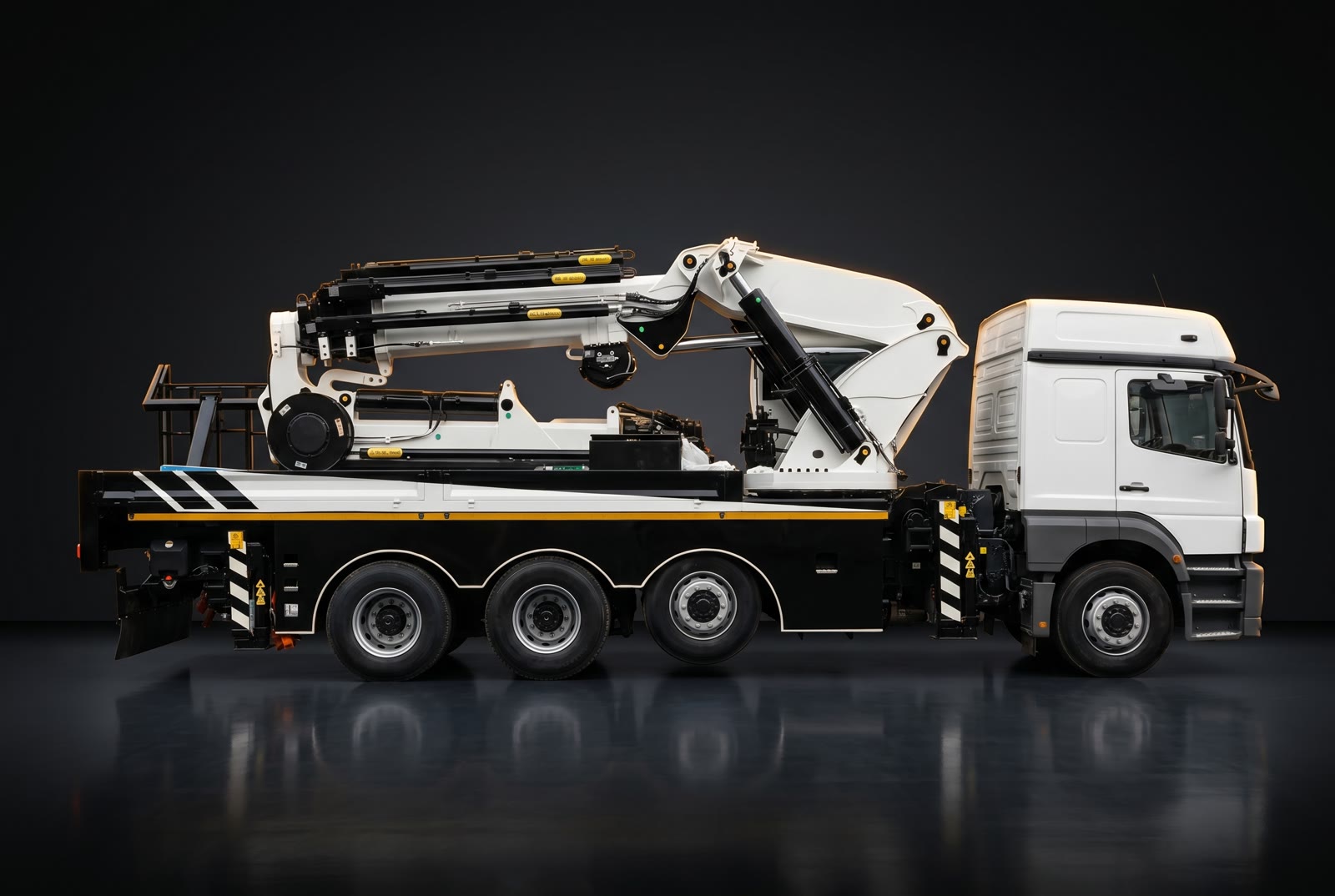

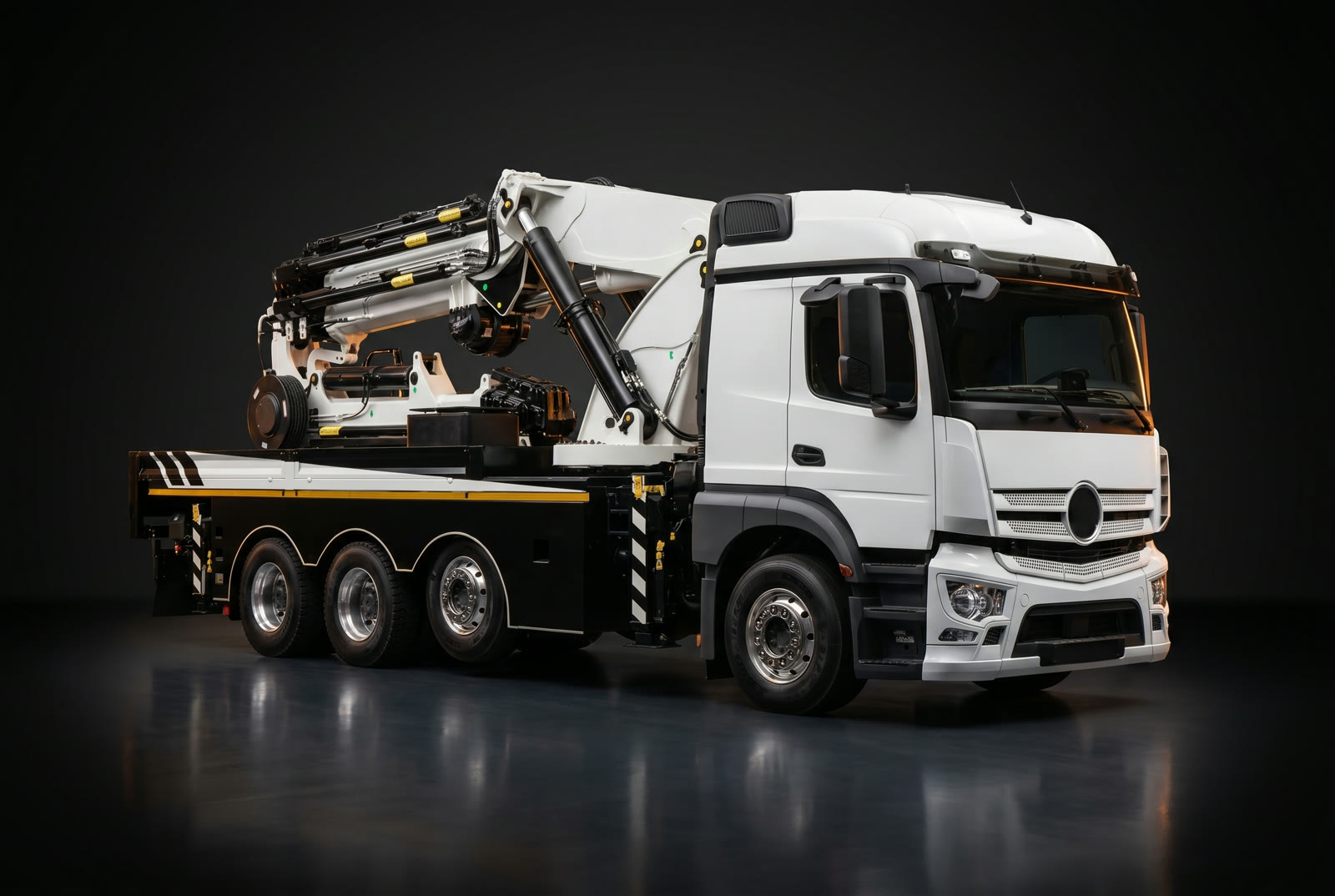

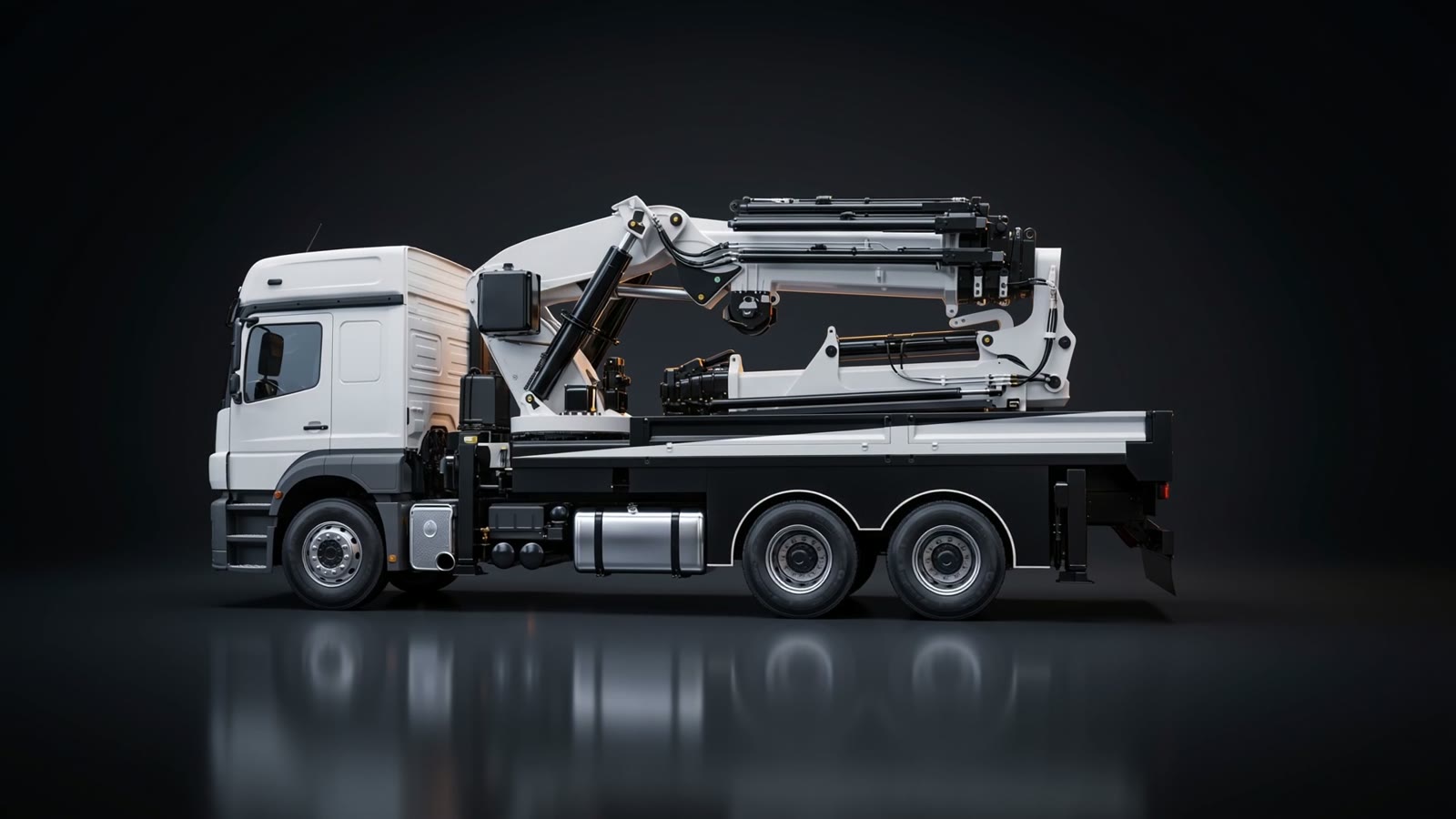

Studio gallery
Every angle
Specifications
AT-35-38 at a glance
Rated capacity
77,160-83,780 lb
Max reach
78.2 ft
Working pressure
3,626 psi
Outrigger spread
27.5 ft
6 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-35-38 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 6 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 15.9 ft | 46,970 lb |
| 22.6 ft | 31,315 lb |
| 29.4 ft | 22,885 lb |
| 36.7 ft | 16,720 lb |
| 44.1 ft | 12,690 lb |
| 52.0 ft | 10,385 lb |
| 60.2 ft | 8,675 lb |
| 69.1 ft | 6,635 lb |
| 78.2 ft | 5,300 lb |
Need the AT-35-38?
Send us your lift, reach and truck class. We respond with a quote and lead time within one business day.
