AT-30
33 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

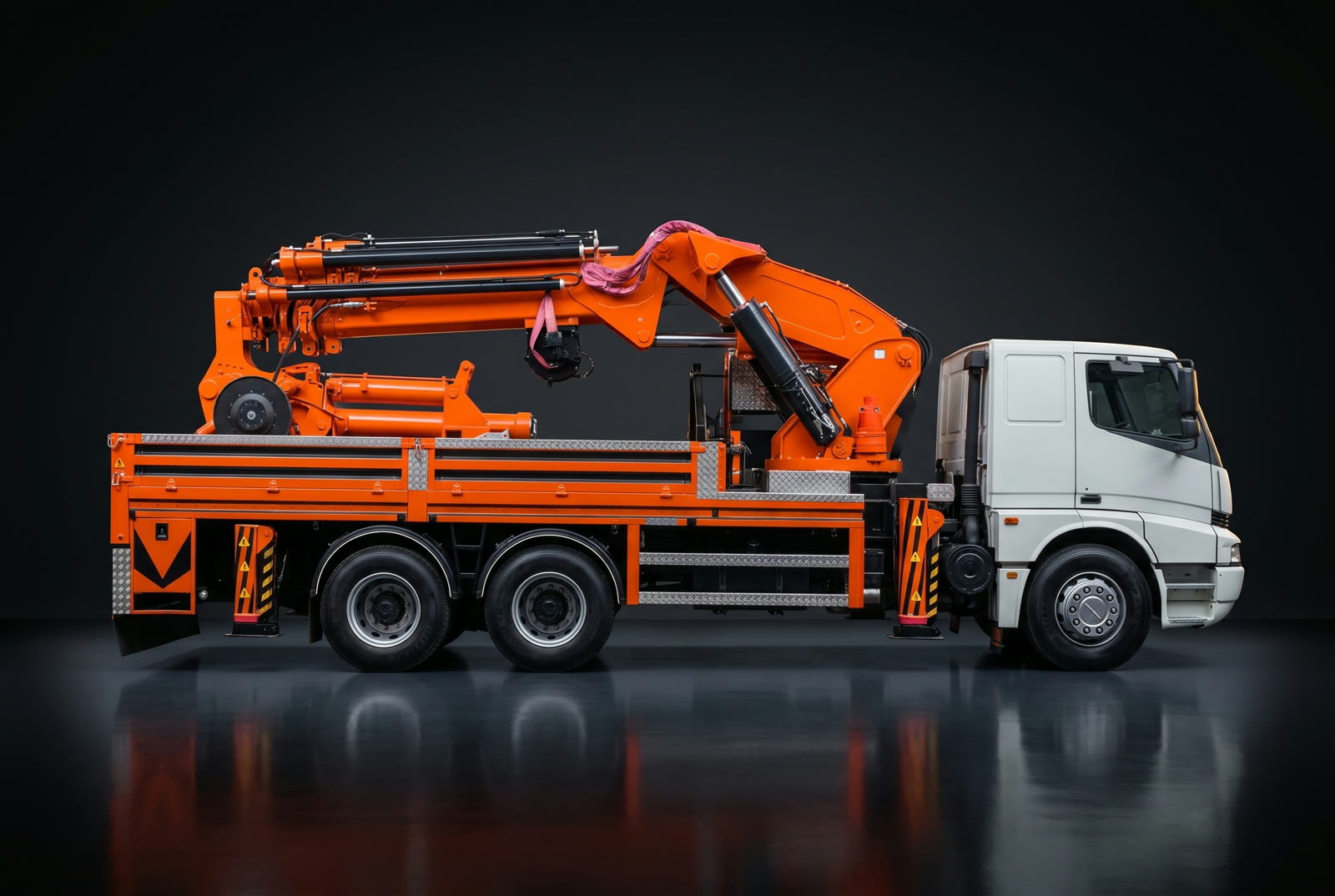

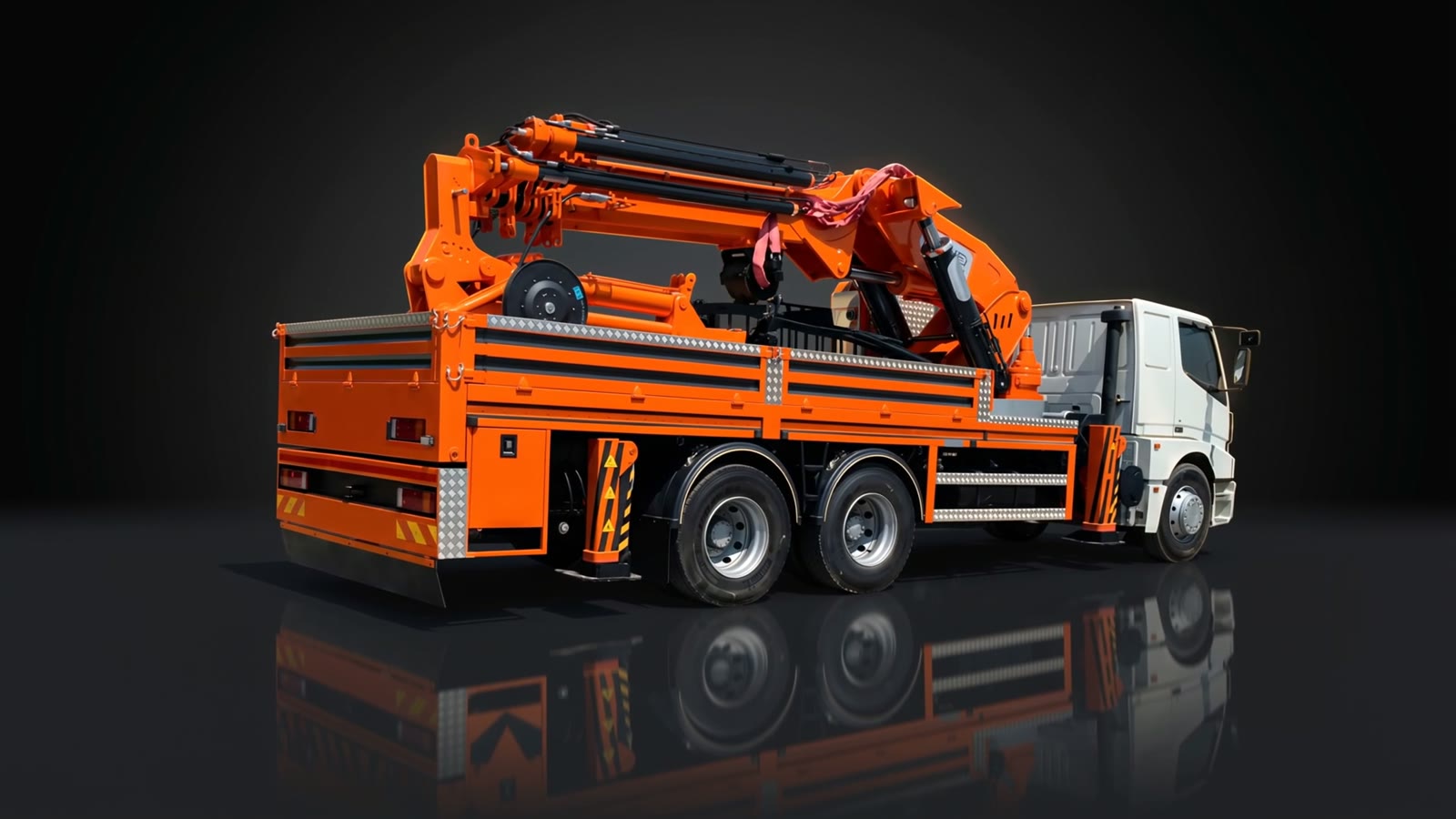

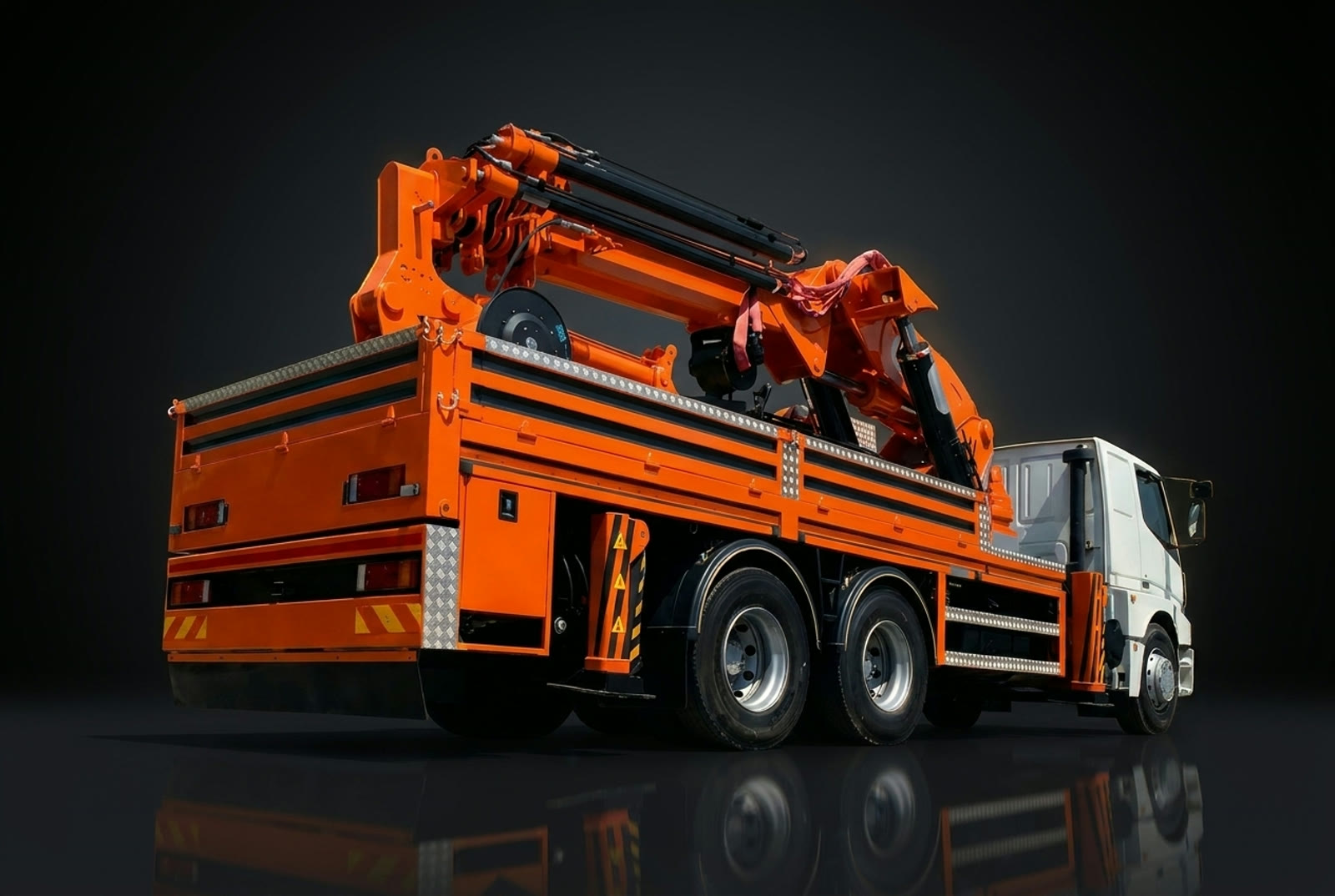

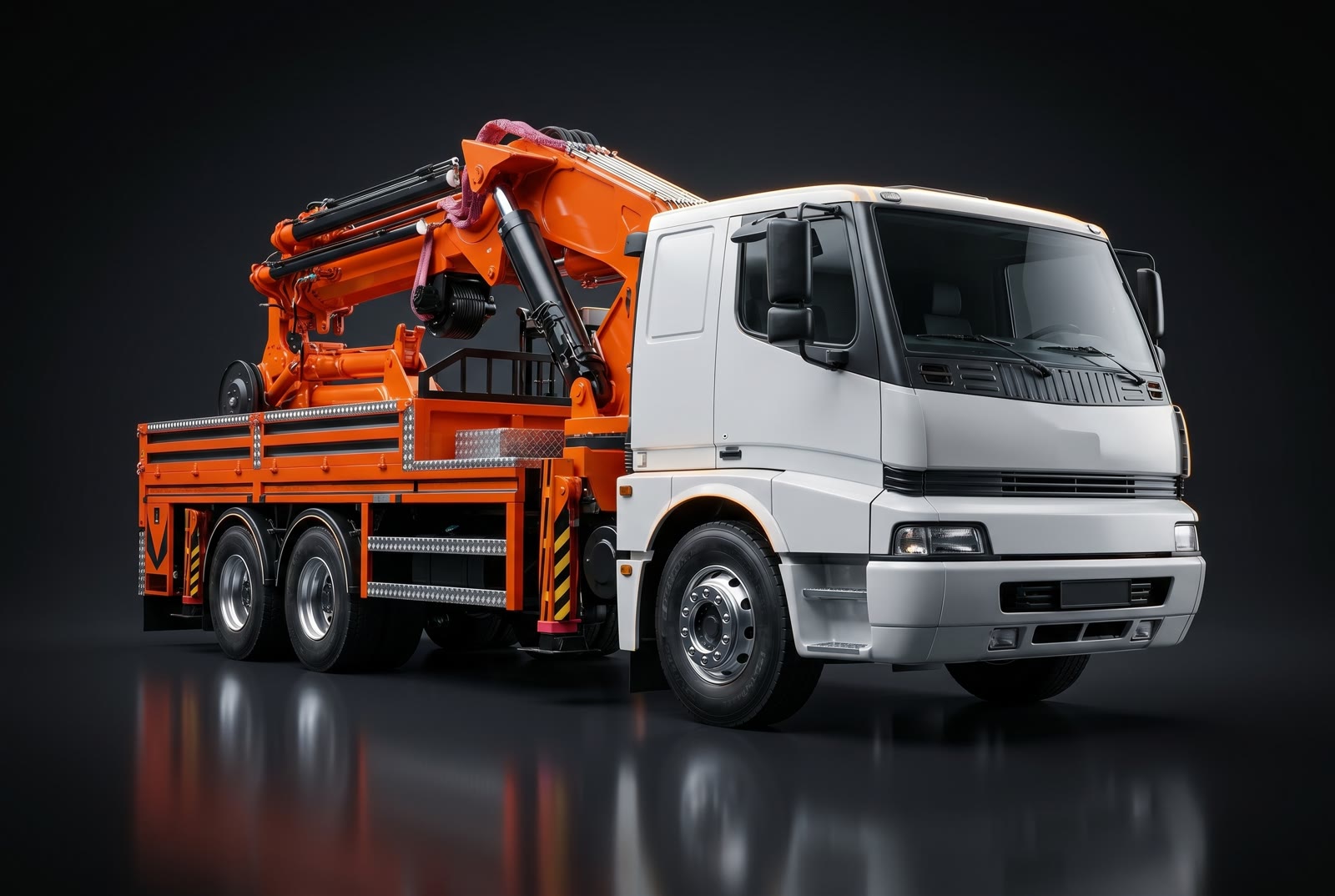

Studio gallery
Every angle
Specifications
AT-30 at a glance
Rated capacity
66,140 lb
Max reach
69.2 ft
Working pressure
3,626 psi
Outrigger spread
27.5 ft
5 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-30 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 5 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 16.1 ft | 41,790 lb |
| 22.1 ft | 27,020 lb |
| 26.5 ft | 18,885 lb |
| 35.9 ft | 13,910 lb |
| 43.5 ft | 11,585 lb |
| 51.5 ft | 9,570 lb |
| 60.4 ft | 5,985 lb |
| 69.2 ft | 4,650 lb |
Need the AT-30?
Send us your lift, reach and truck class. We respond with a quote and lead time within one business day.
