AT-25-27
28-30 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

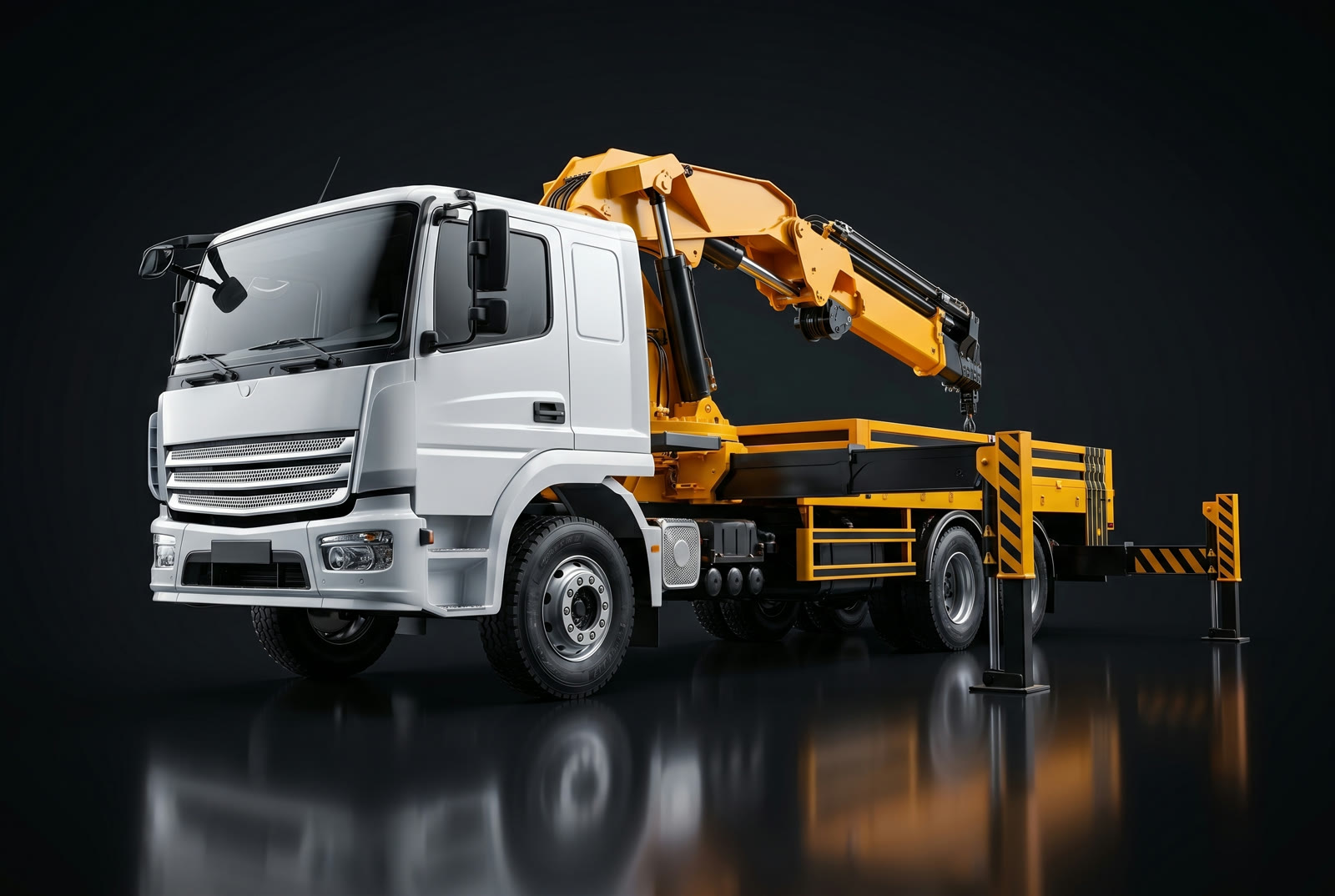

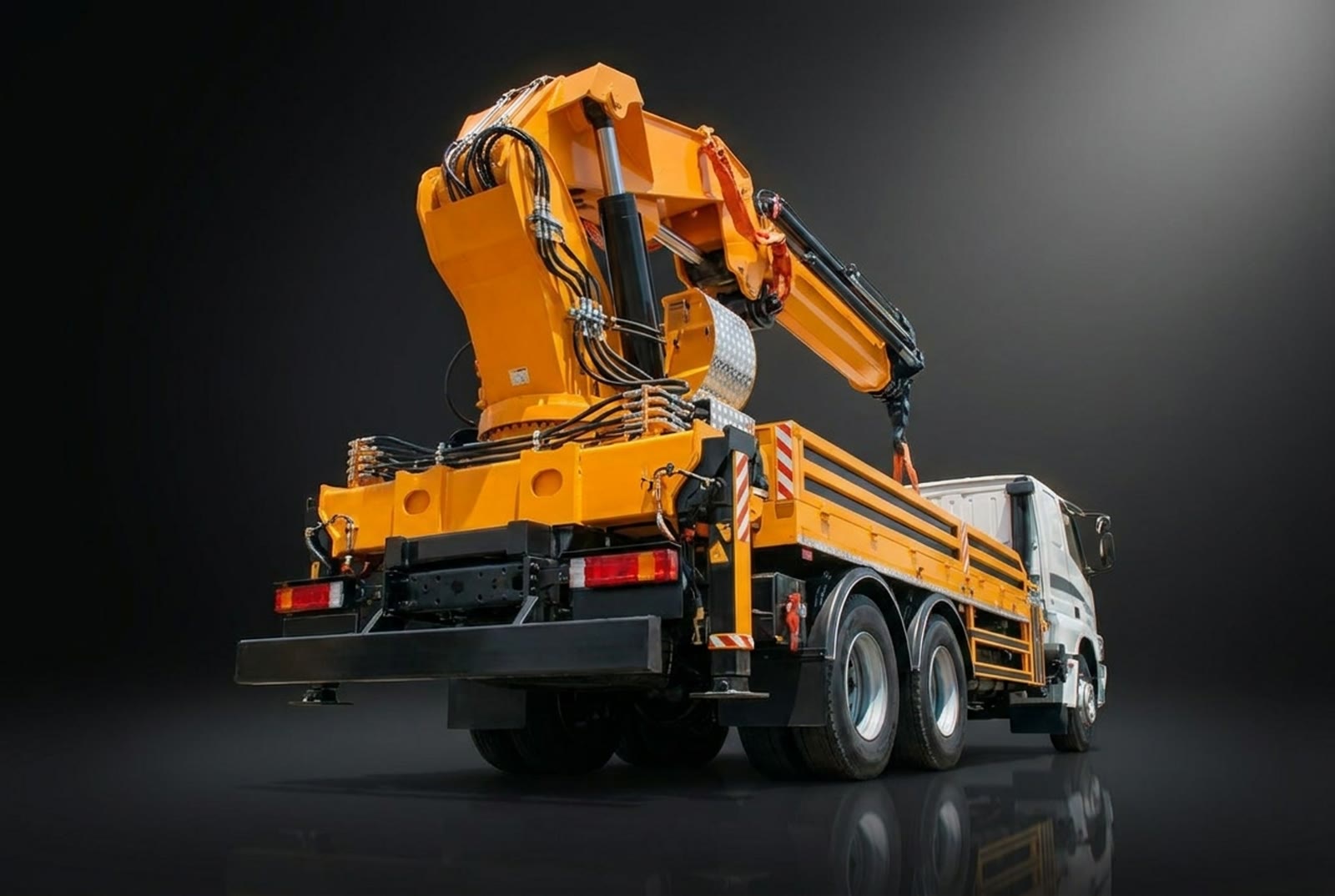

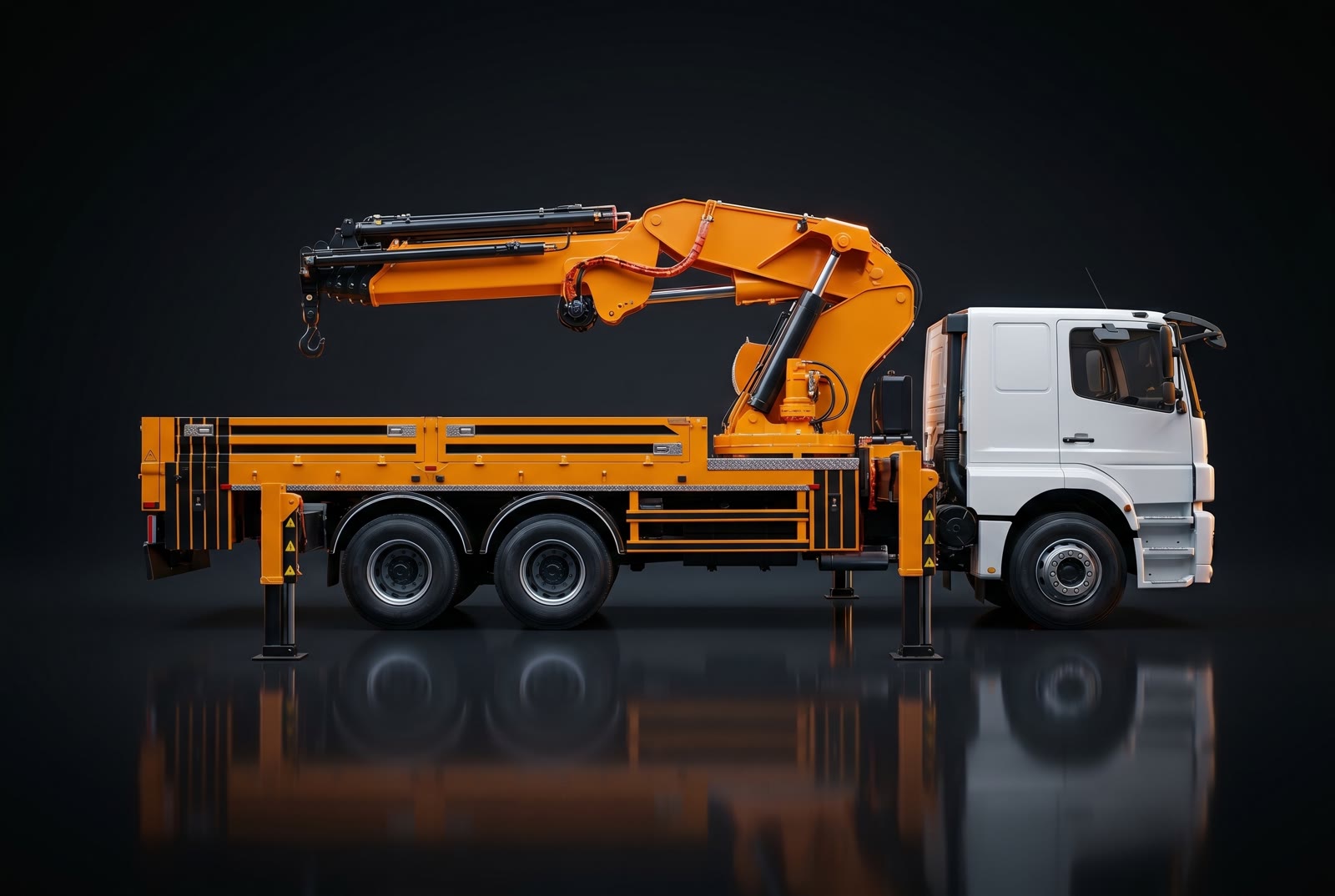

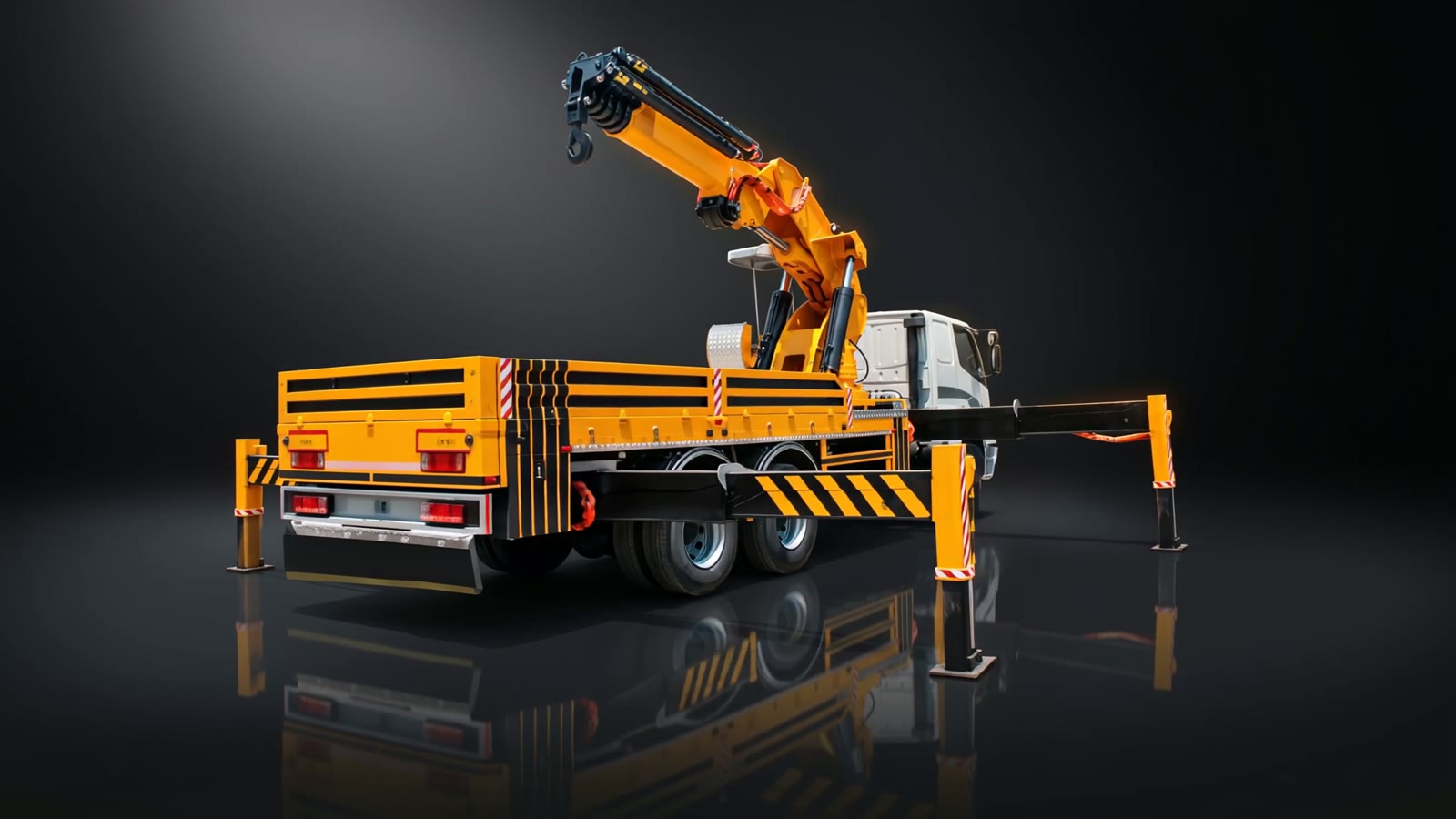

Studio gallery
Every angle
Specifications
AT-25-27 at a glance
Rated capacity
55,100-59,500 lb
Max reach
69.9 ft
Working pressure
3,626 psi
Outrigger spread
27.3 ft
5 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-25-27 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 5 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 15.9 ft | 32,045 lb |
| 22.5 ft | 20,130 lb |
| 29.4 ft | 12,930 lb |
| 36.6 ft | 9,085 lb |
| 44.0 ft | 6,880 lb |
| 52.0 ft | 5,510 lb |
| 60.7 ft | 4,070 lb |
| 69.9 ft | 3,065 lb |
Need the AT-25-27?
Send us your lift, reach and truck class. We respond with a quote and lead time within one business day.
