AT-16
18 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

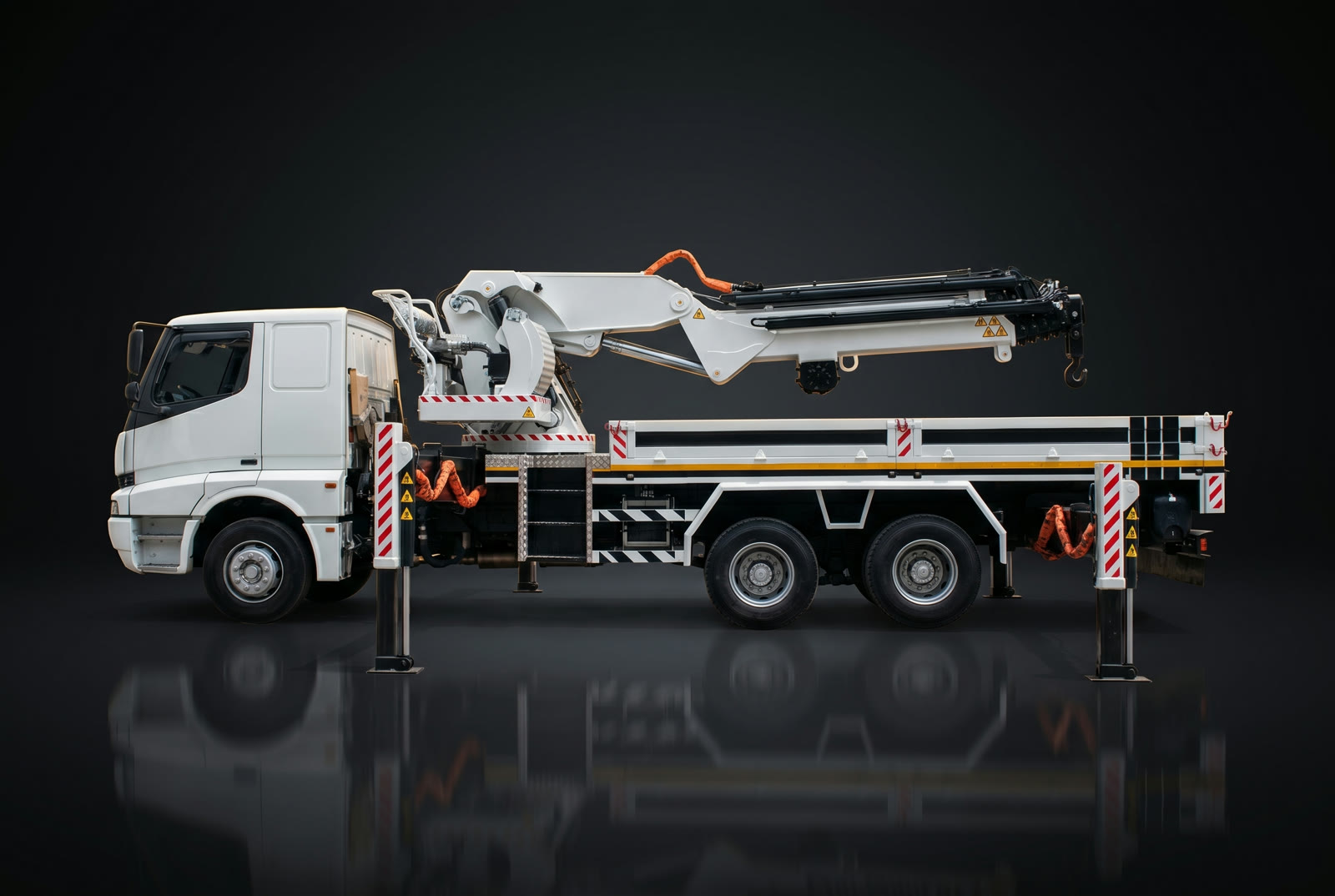

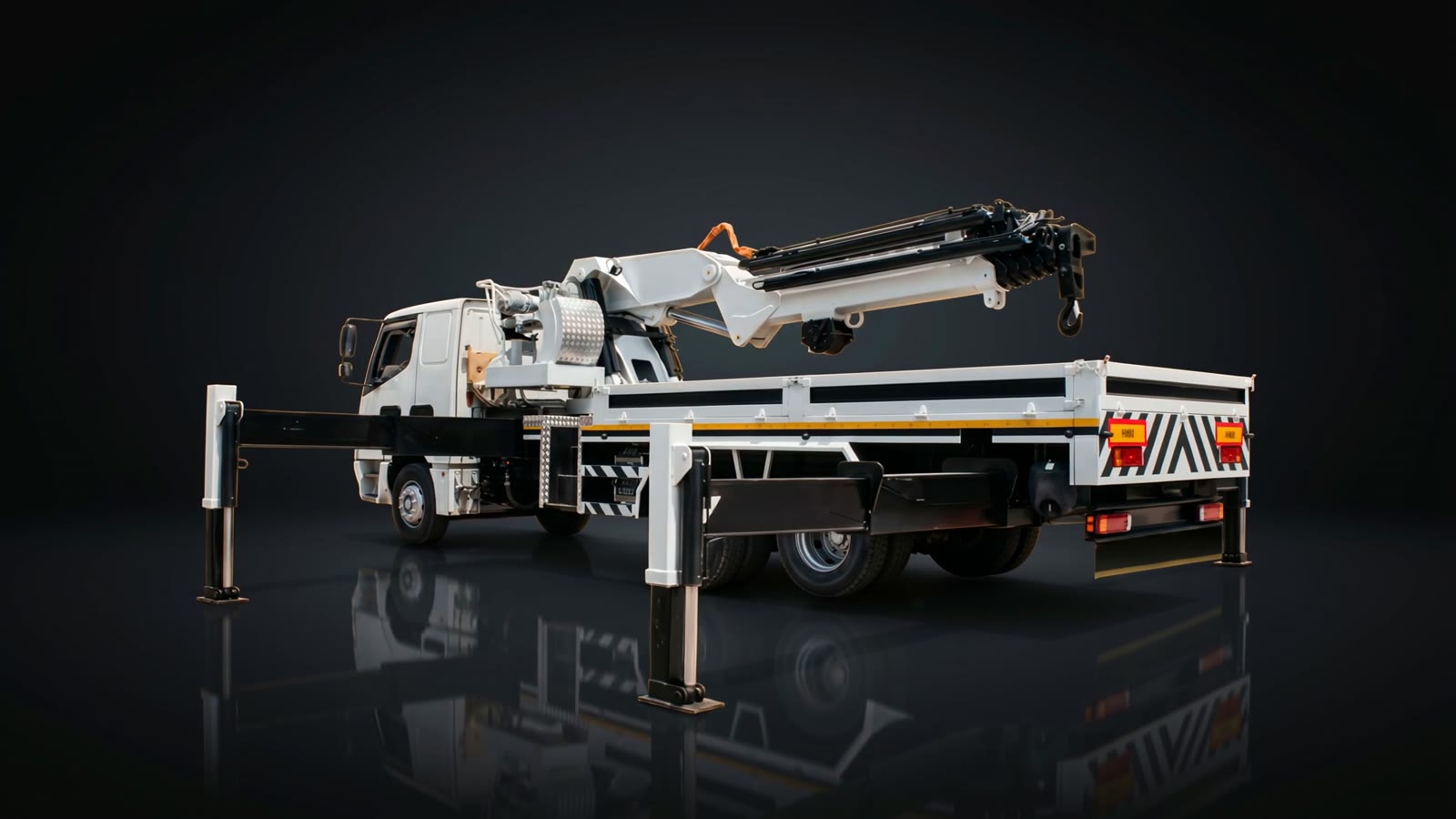

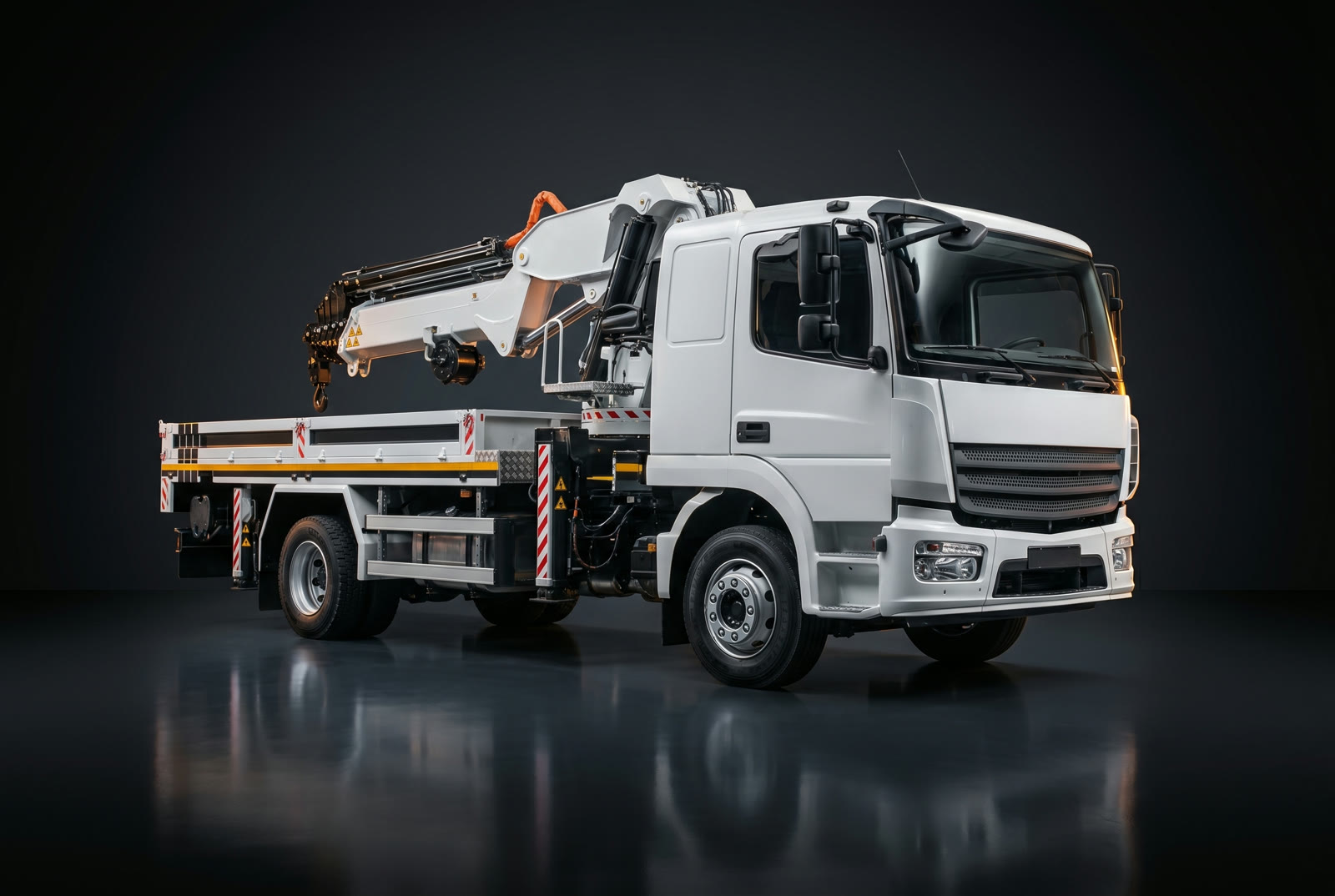

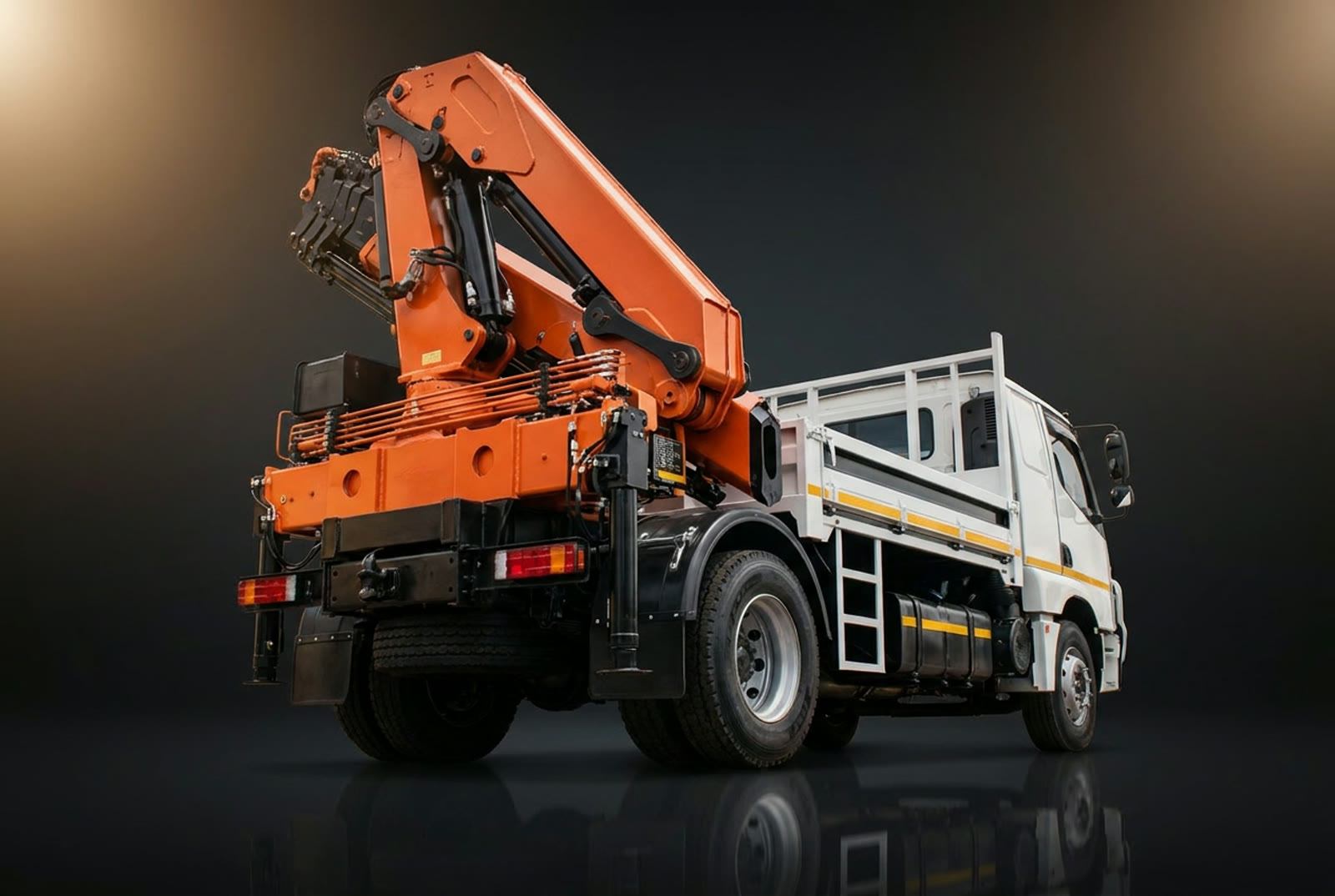

Studio gallery
Every angle
Specifications
AT-16 at a glance
Rated capacity
35,270 lb
Max reach
69.5 ft
Working pressure
3,626 psi
Outrigger spread
20.9 ft
5 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-16 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 5 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 16.1 ft | 22,600 lb |
| 22.6 ft | 13,430 lb |
| 29.4 ft | 9,570 lb |
| 36.6 ft | 7,100 lb |
| 44.3 ft | 5,340 lb |
| 52.3 ft | 4,150 lb |
| 61.0 ft | 3,150 lb |
| 69.6 ft | 2,270 lb |
