AT-13
14 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

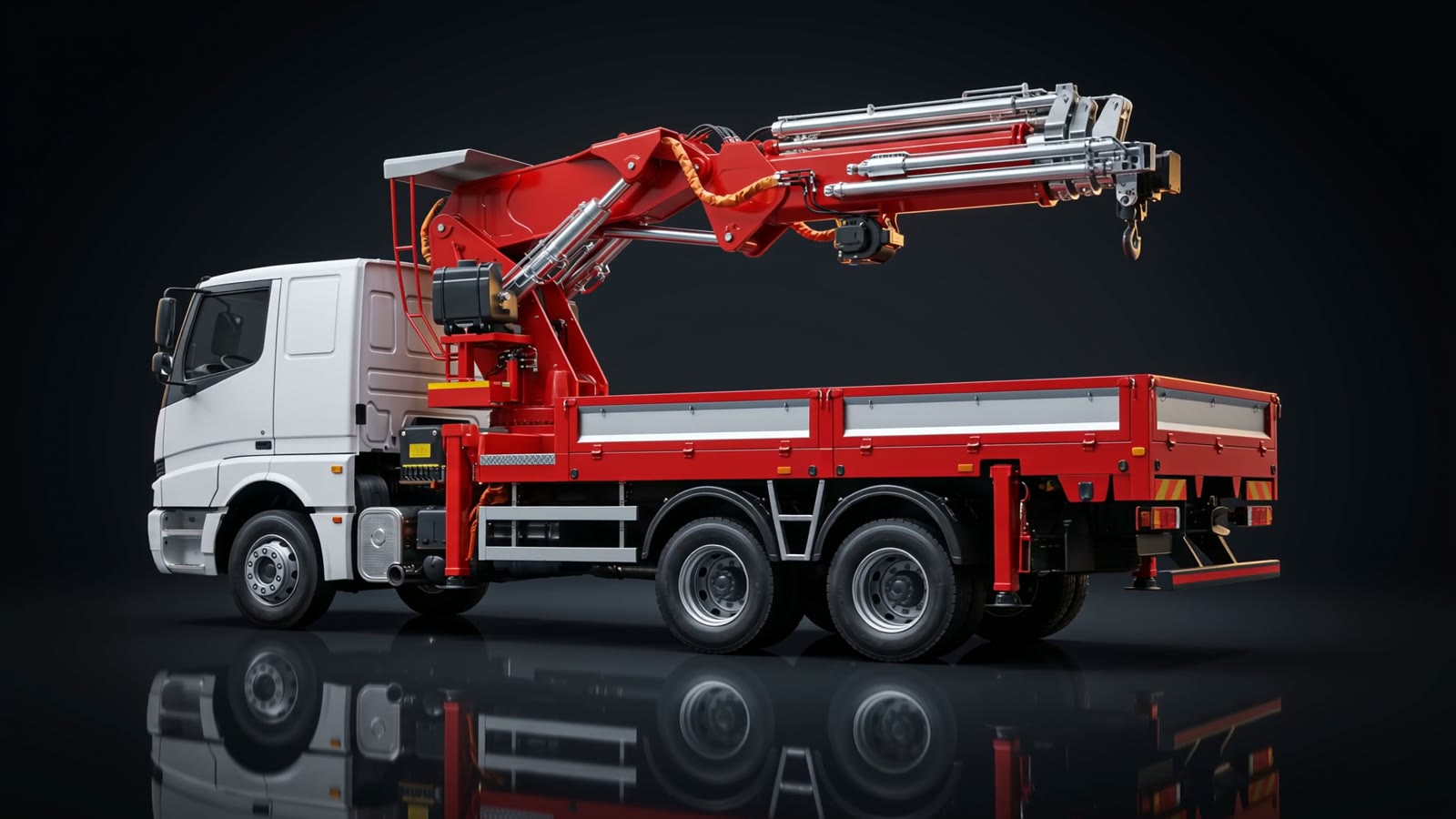

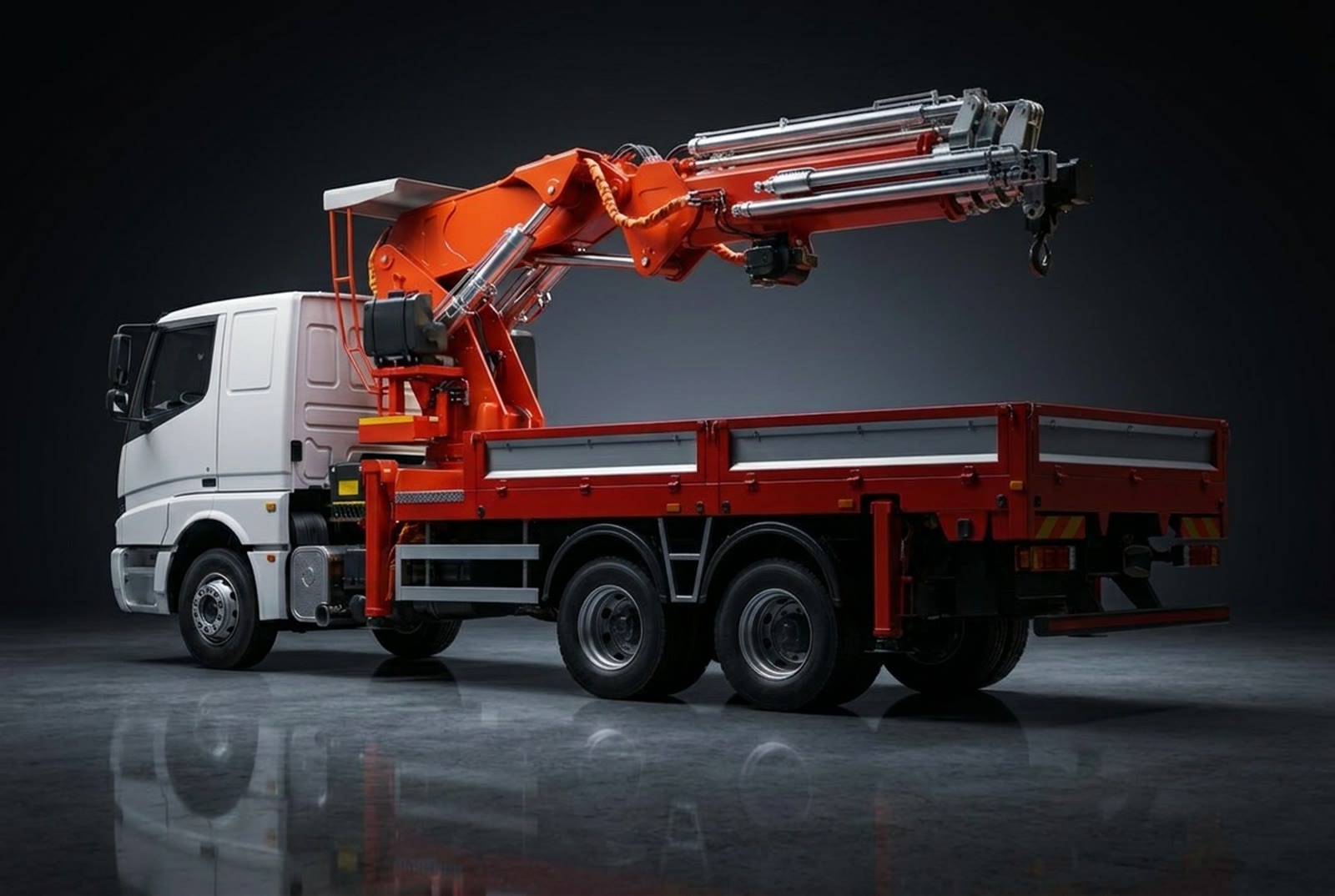

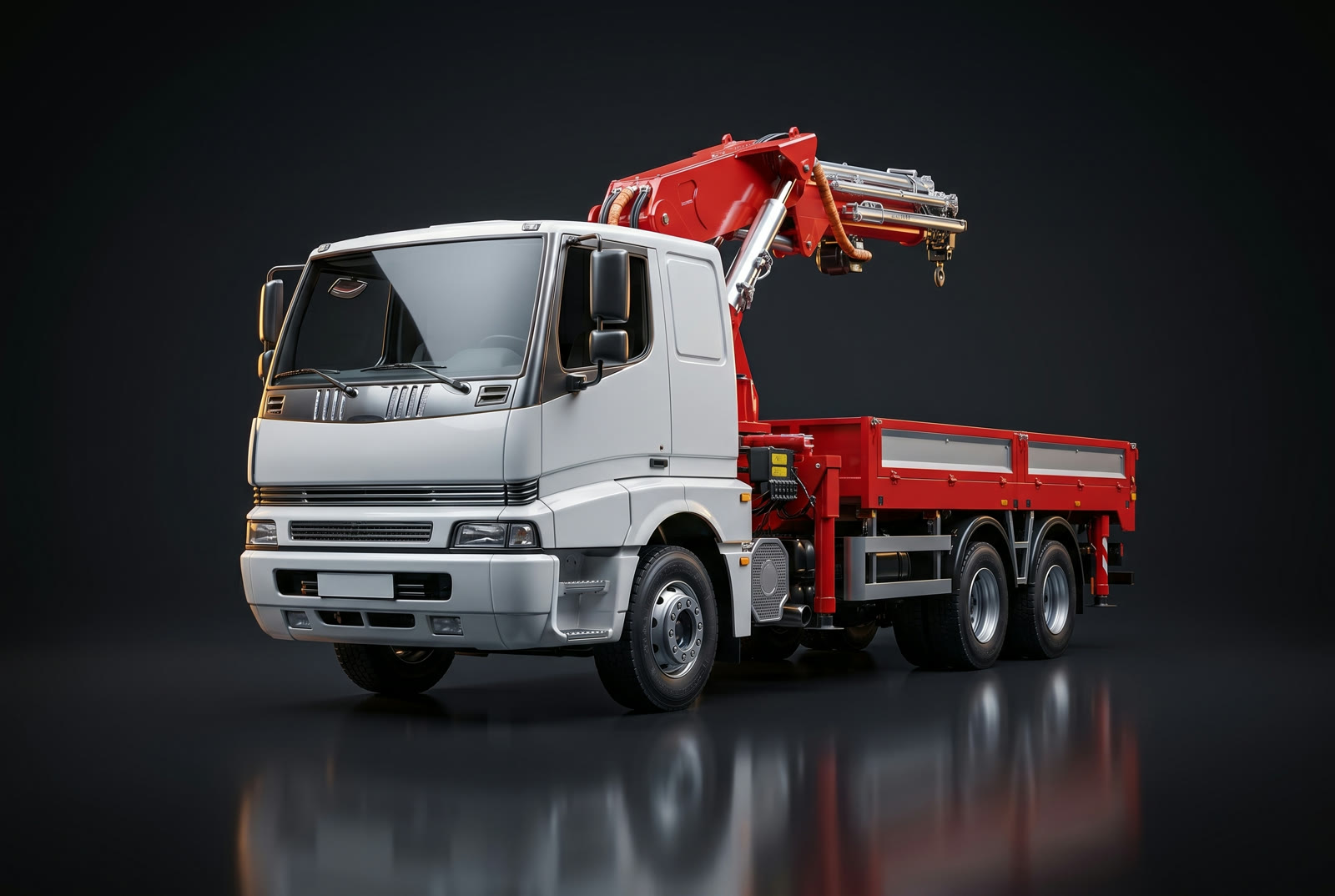

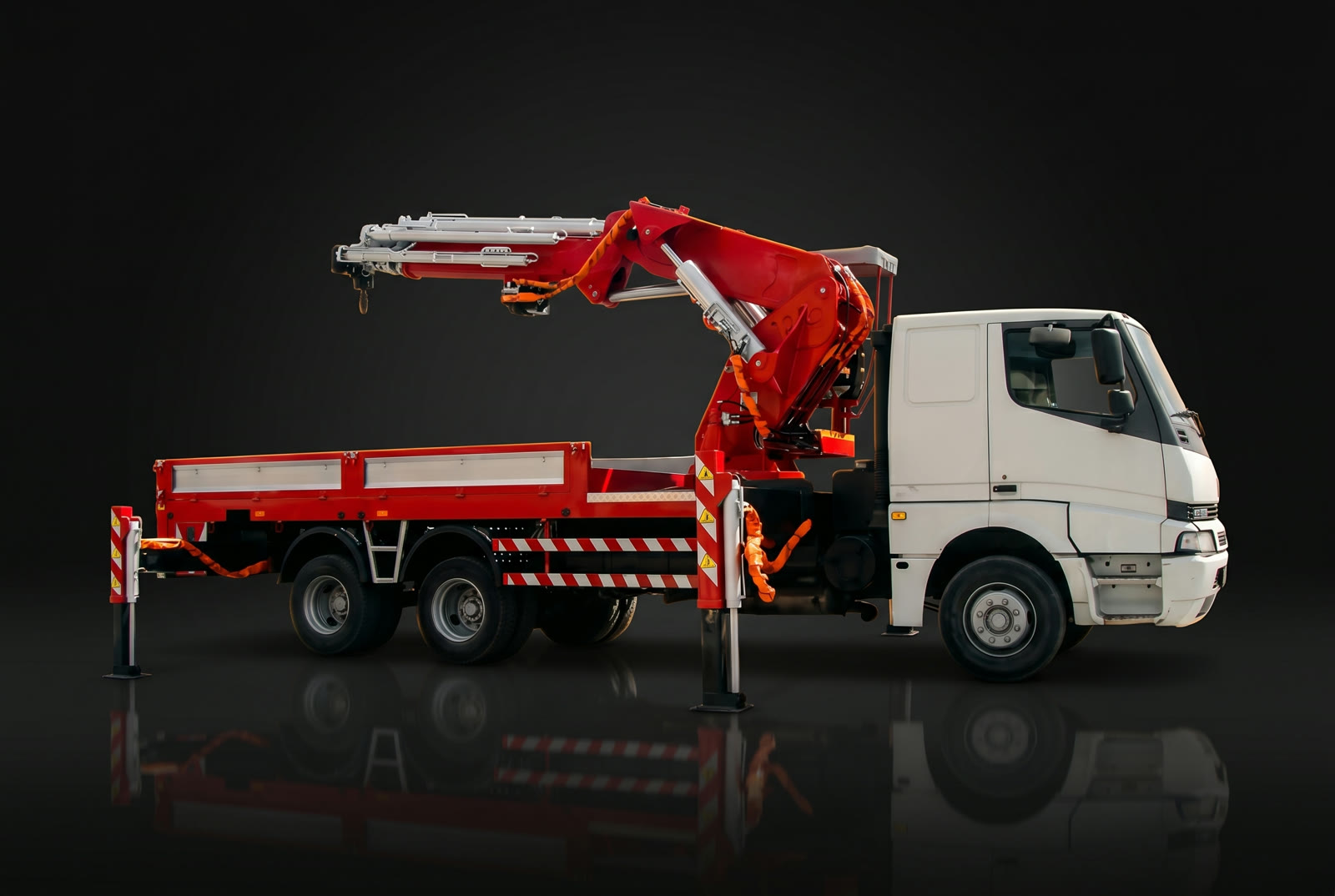

Studio gallery
Every angle
Specifications
AT-13 at a glance
Rated capacity
28,660 lb
Max reach
69.5 ft
Working pressure
3,626 psi
Outrigger spread
18.6 ft
5 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-13 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 5 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 15.6 ft | 16,130 lb |
| 22.1 ft | 10,440 lb |
| 29.0 ft | 6,480 lb |
| 36.3 ft | 4,300 lb |
| 43.8 ft | 3,120 lb |
| 51.8 ft | 2,460 lb |
| 60.5 ft | 1,665 lb |
| 69.6 ft | 1,058 lb |
Need the AT-13?
Send us your lift, reach and truck class. We respond with a quote and lead time within one business day.
