AT-10
11 US tons · Hydraulic Knuckle Boom Crane
Scroll to rotate

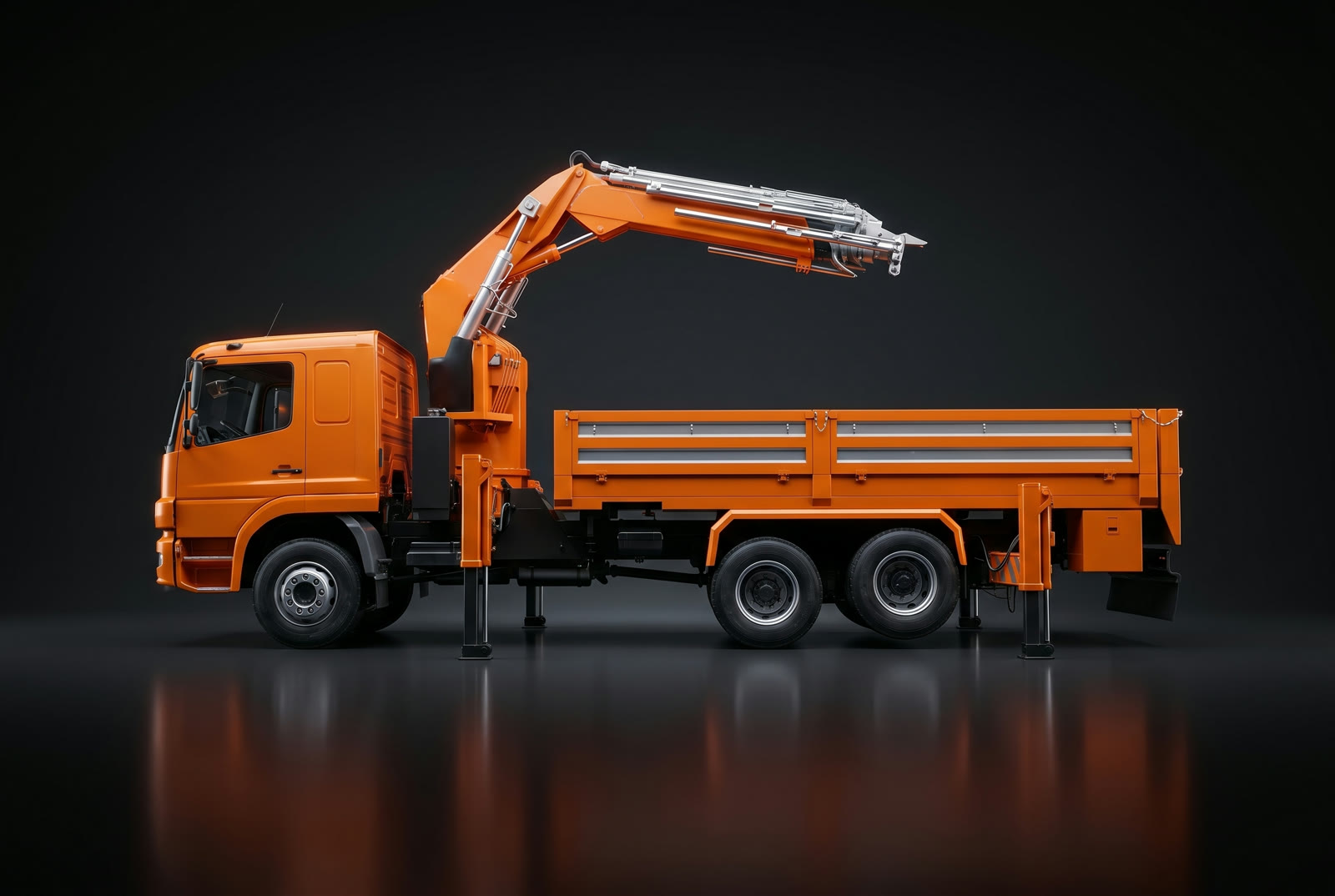

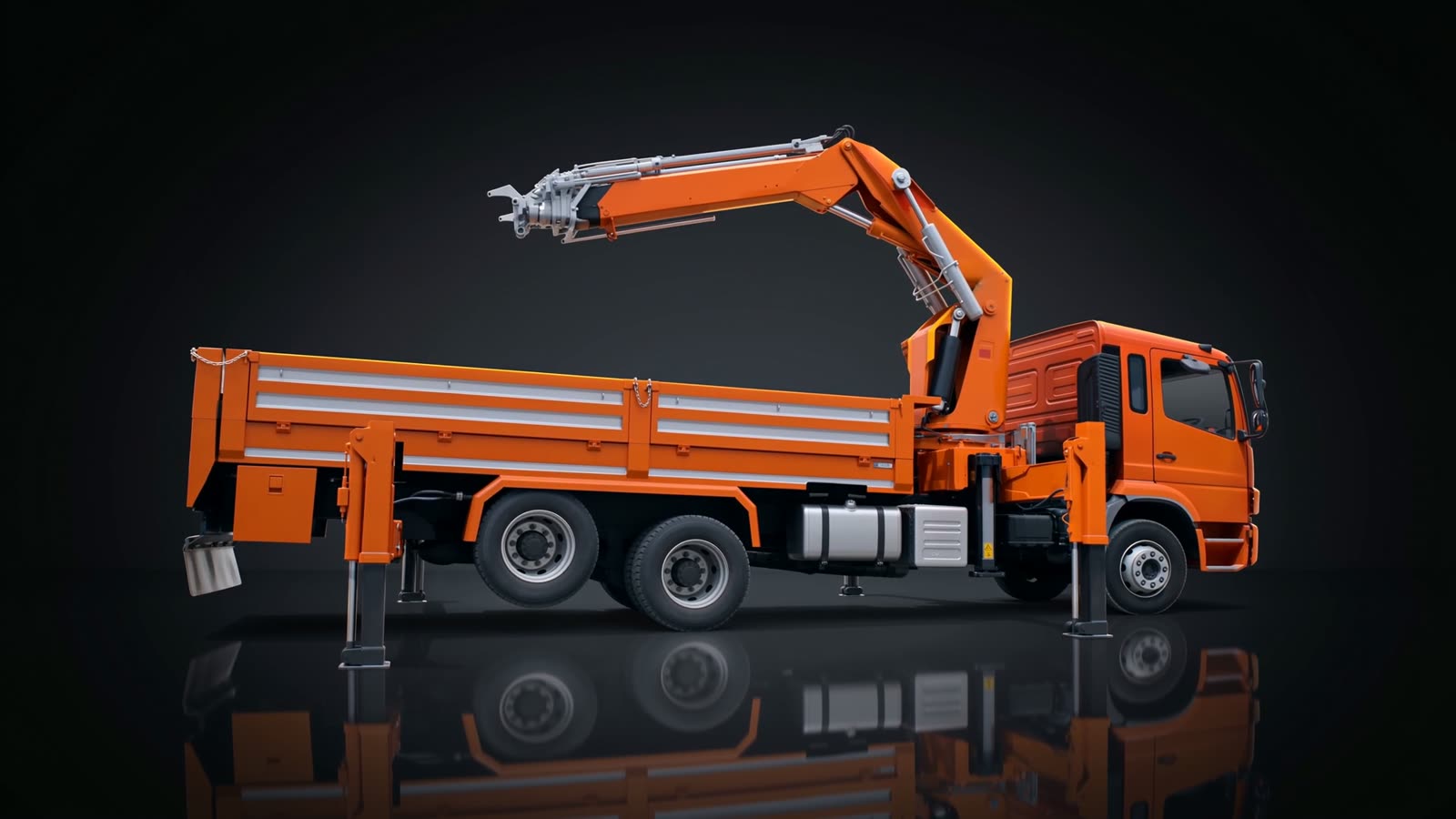

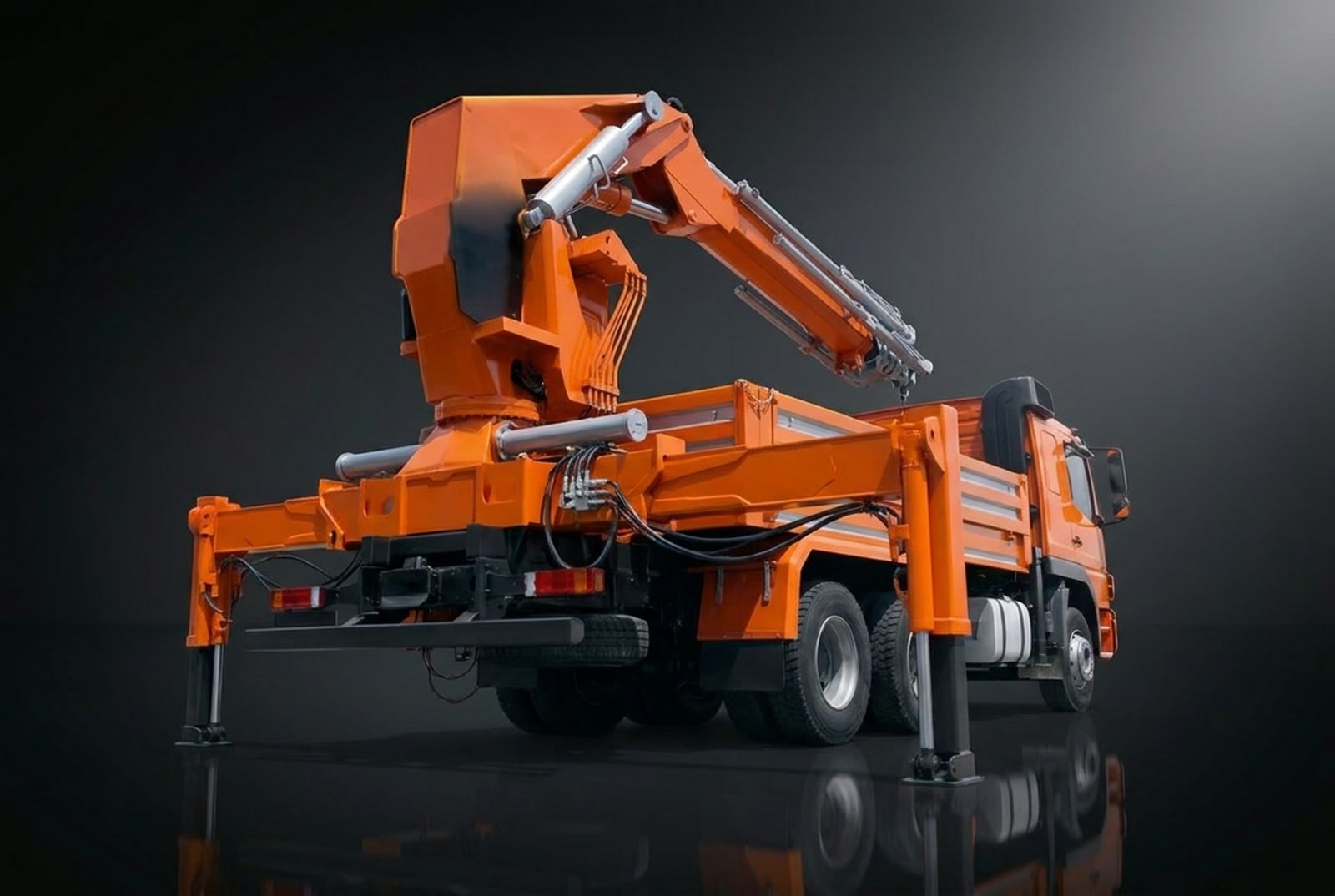

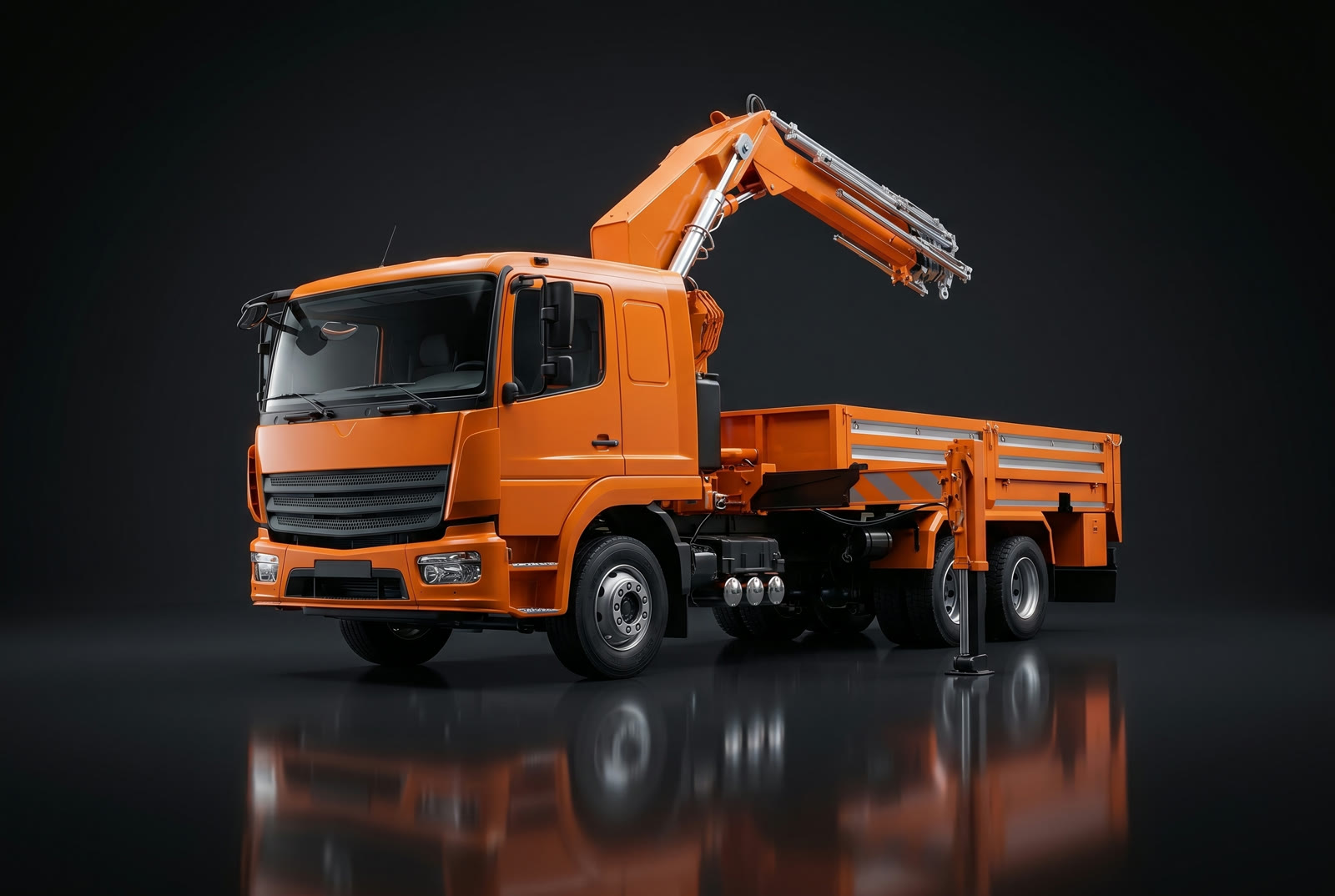

Studio gallery
Every angle
Specifications
AT-10 at a glance
Rated capacity
22,050 lb
Max reach
53.3 ft
Working pressure
3,626 psi
Outrigger spread
16.9 ft
5 hydraulic + 2 manual boom sections · 360 degree continuous slewing · figures for the standard configuration. Request the full spec sheet.
Load chart
AT-10 lifting capacity by reach
As the boom extends, rated capacity decreases. Figures shown for the 5 hydraulic + 2 manual configuration in US units.
| Working reach | Max lifting capacity |
|---|---|
| 13.0 ft | 15,290 lb |
| 17.6 ft | 8,775 lb |
| 22.5 ft | 5,635 lb |
| 27.7 ft | 3,900 lb |
| 33.5 ft | 2,945 lb |
| 39.5 ft | 2,350 lb |
| 46.1 ft | 1,700 lb |
| 53.3 ft | 1,170 lb |
Need the AT-10?
Send us your lift, reach and truck class. We respond with a quote and lead time within one business day.
